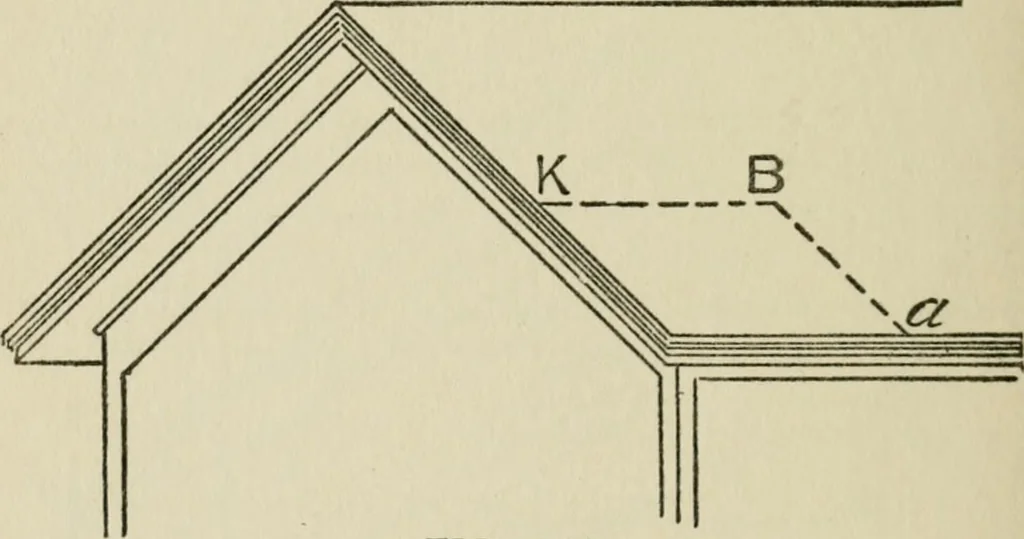

t B; then, with B as a center, 240 PRACTICAL CARPENTRY describe the arcs ak, cl, etc., intersecting thesame Hne ka on the opposite side of DB. Thisgives the point k at the same distance from DB asthe points a and a, and the hne 11 at the samedistance as cc. The rest of the same group ofparallel… … FIG. 185 plane, hence we may represent the plane of a roofby the Hne Ba and Bk (Figs. 184 and 185); andsince it will be most convenient to measure thedistances required in a direction perpendicular tothat plane, in following out the principle drawlines from the points cef, etc., parallel to Ba…
