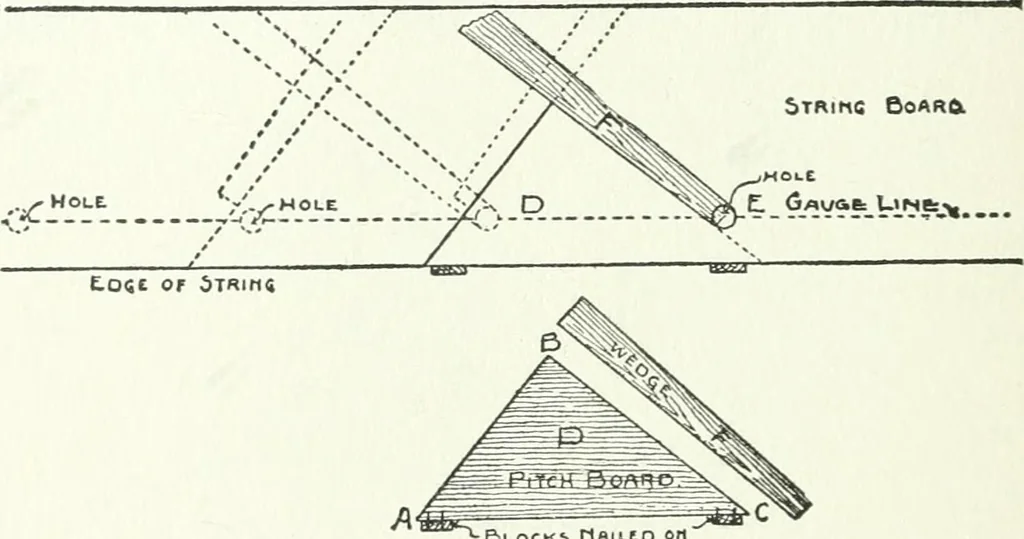

ngs. Then, having found the riseand run of riser and step, set dividers fromrise on blade of square, and step off on gauge- 138 FRAAHNG line the required number of treads. Next takea center bit the size of nosings, and start holesat these points. Next mark a pitch-board, asshown in the lower part… … -BuOCKi n«lLtDPBOJECTini; y^ tACM.SlOEToACTAiQulOES- Pig. 75. Method of Laying Out Stair Strings. and slide it along edge of string-board until edgetouches hole E. Mark tread and riser; and,before moving pitch-board, place the wedgestick as shown at F and at dotted lines, andmark outside. Proceed…
