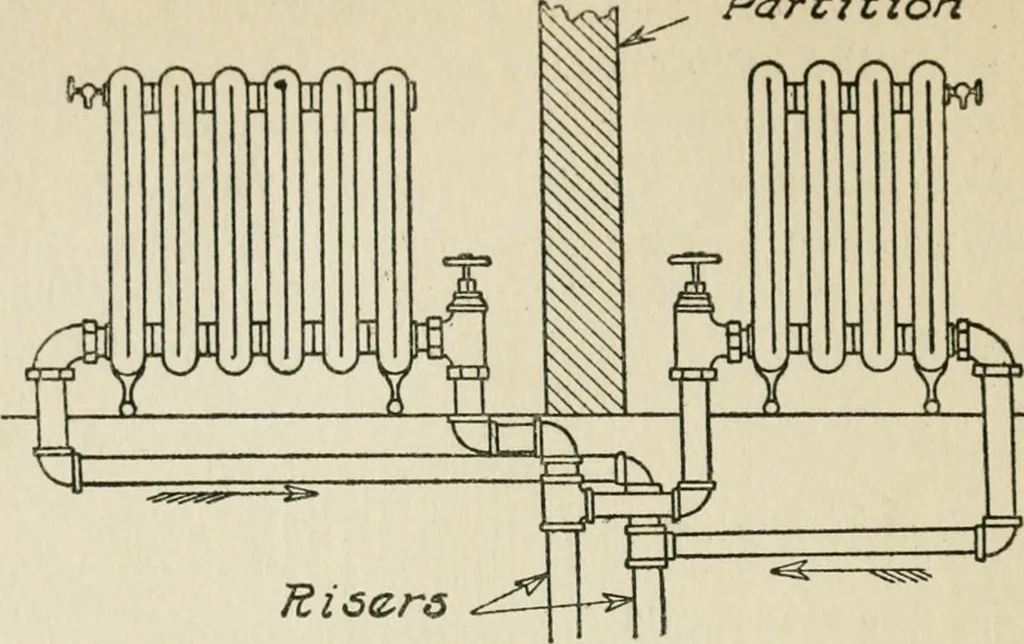

ow Tliird-Floor Hot-Water Radiator ts Con-nected to Side of Riser Feeding Second-Floor Radiator. the extra elbows. Fig. 43 shows the ordinarymethod of joining a hot-water radiator to theflow and return mains, this connection beingmade in as direct a manner as possible. When a branch feeds a… … Eiders Fig. 46. Two Eadiators on Same Floor F«d by a Common Riser—Larger Radiator Connected to Top, and Smaller to Side of Riser. taken from the side of the one supplying thesecond-floor surface, as illustrated in Fig. 45.Note the application of the reducing tees on theriser.
