Radford's portfolio of details of building construction : a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale ... (1911)
Radford, William A., 1865-, Johnson, Bernard L, Rawson, Charles P · Chicago : The Radford Architectural Company · leaf 143

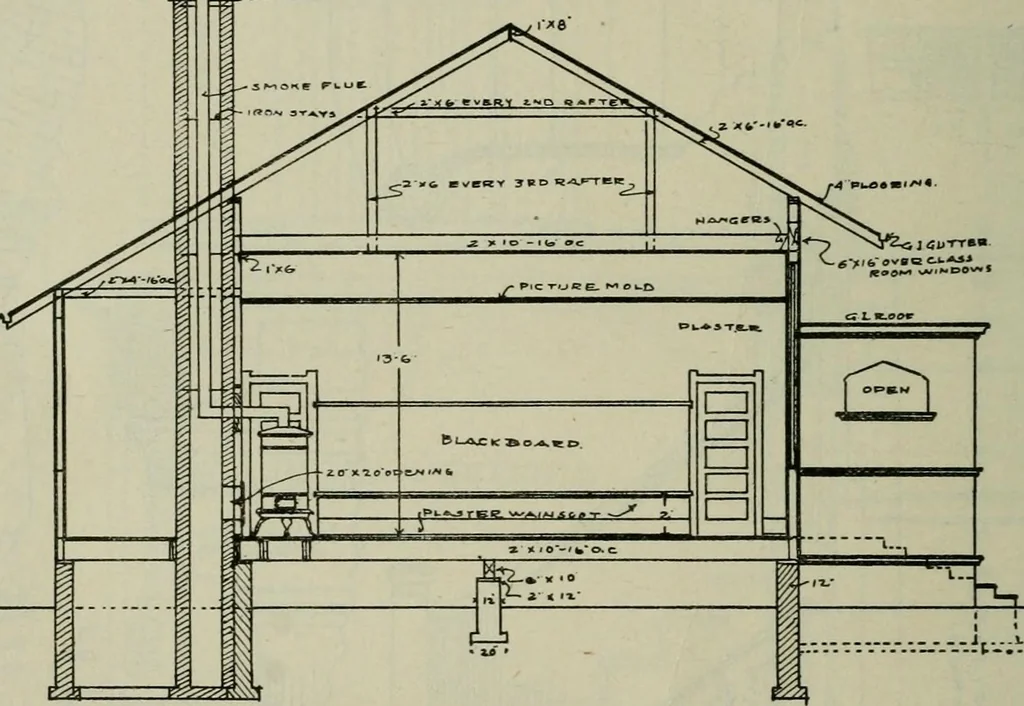

23 fe 3TONC … CROS&5ECTIO/M ON U/HE.A-B. PLATE 130—WISCONSINS MODEL COUNTRY SCHOOL Front elevation, floor plan and cross sectionshowing improved ventilation scheme and detailsof construction of one of the model school designsrecommended by the Wisconsin State School De-partment. Normal capacity of school, 50…
Building · Architecture
