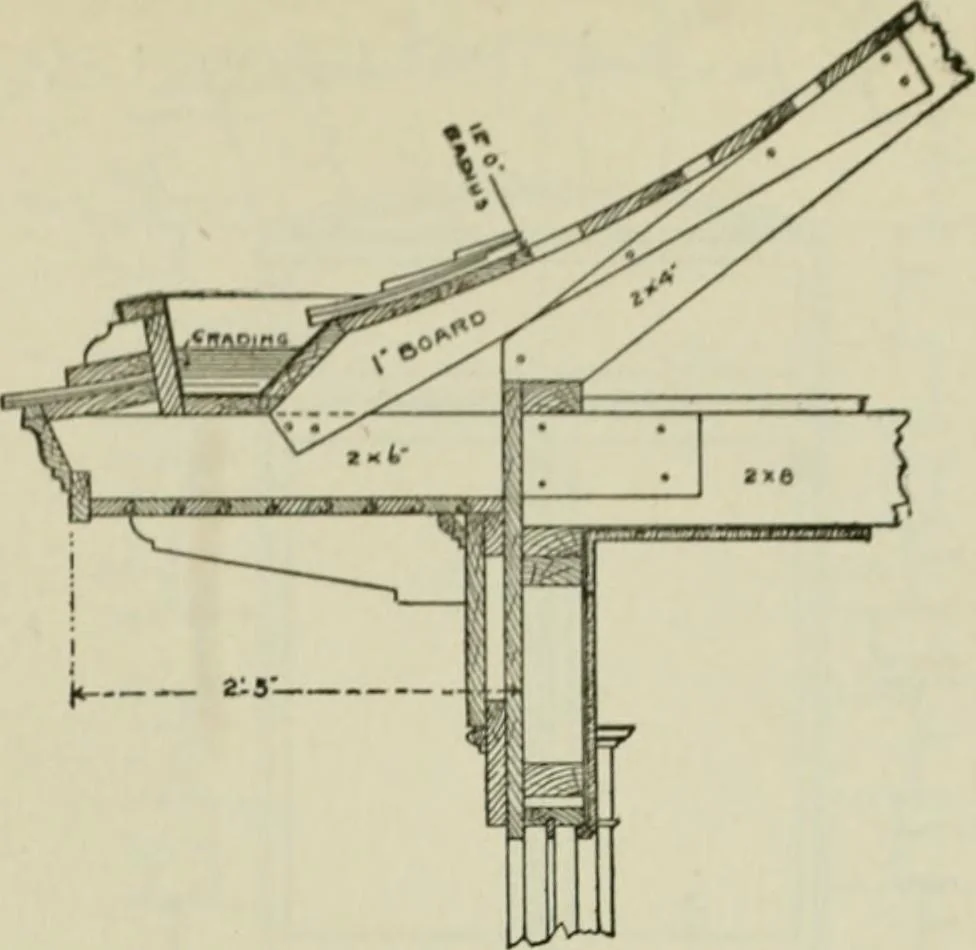

PLATE 133 B—CONSTRUCTION FOR CURVING EAVES Two methods are illustrated for producing thecurve or flare at the eaves. Often the tendencyin such roofs is not to allow enough radius forthe curve, thus making the roof too flat at the eaves. A 12-foot radius is here illustrated. Notethat the horizontal…
