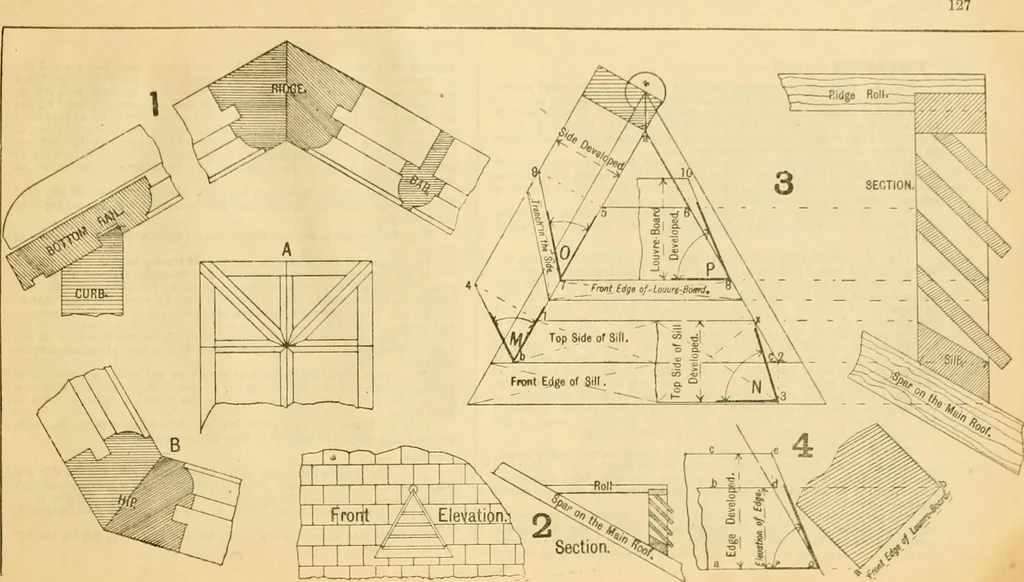

use the bevels are all the same. Exercises. 1. On tha ridge of Fig. 1, placo a 2 roll, and draw a corresponding onefor the hip. 2. Explain why tho lines b i and o 3, Fig. 3, are the same length;also the lines 7 9 and 8 10. 3. Draw the plan of the triangular frame, and develope one side. 4. Let the… … Fig. 2. Shows plaonala of the square ba VENTILATORS continued.— Fig. 1. Shows part elevation, plan, and part section of a small squareventilator on the top of a roof. These are used for stables, schools, &o. They are generally formed by square vertical posts, the bottom and toprails being…
