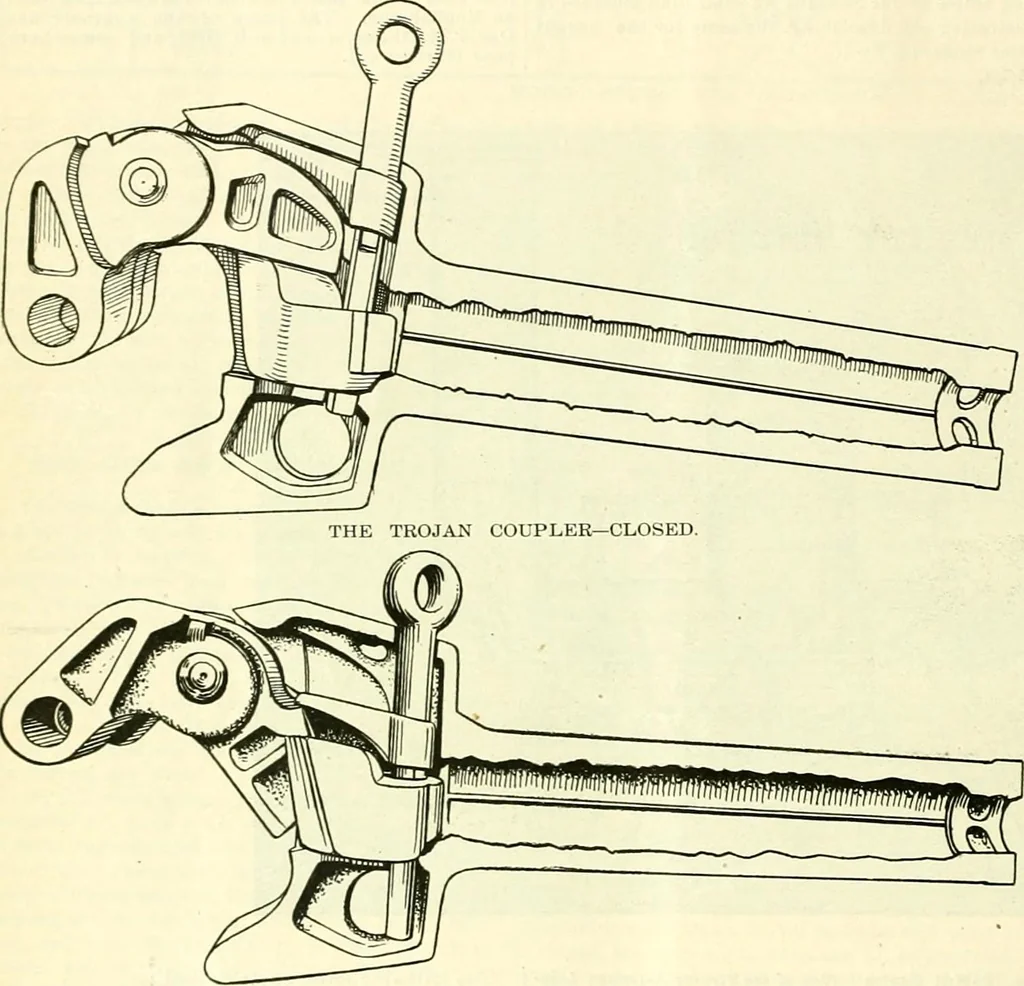

bears against the back of the knuckle andcauses it to be thrown open, ready for coupling. A1 in. round rod, about Si ft. long, with an eye at oneend, which engages with the eye of the operatingrod, reaches to the side of the car and is there sup-ported by a bent plate with a slot cut in it… … THE TROJAN Thedrawingof the DeWitt Clinton, now in the.society rooms at New York, is not the engine asbuilt; the wheels there shown are like the actualwheels, but the number of spokes is shown as onetoo many, and the boiler and some other details werenot built after this design. Possibly this…
