Rogers' drawing and design; an educational treatise relating to linear drawing; machine design; working drawings; transmission methods; steam, electrical and metal working machines and parts; lathes; boiler and parts; instruments and their use; tables, etc (1913)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 119

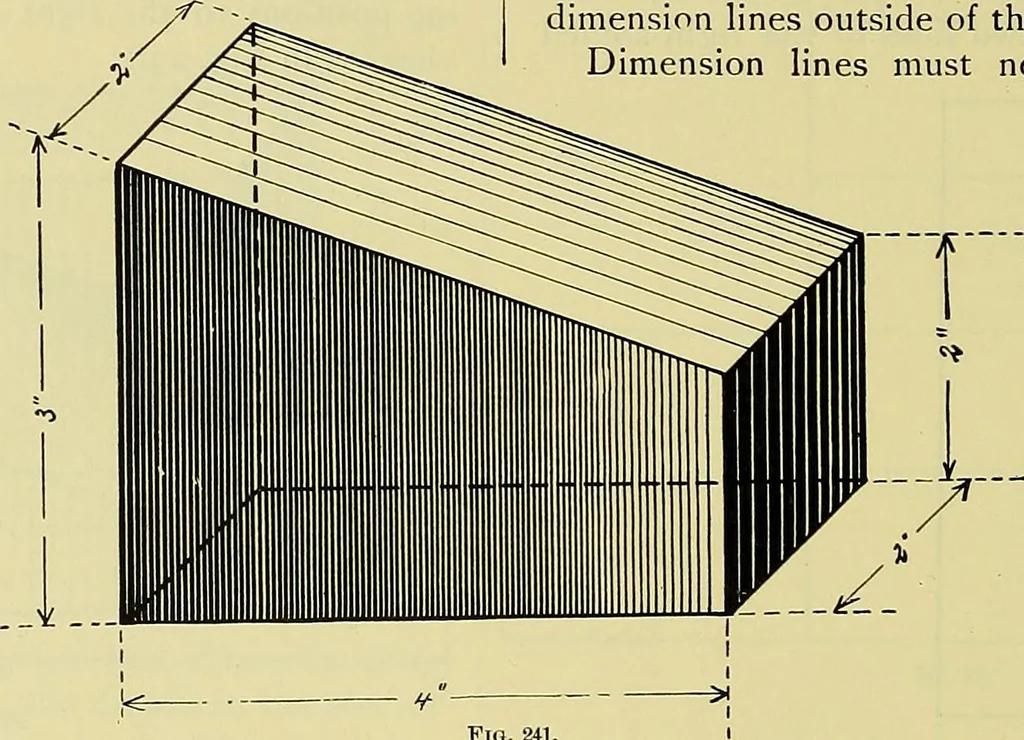

34 ROGERS DRAWING AND DESIGN. Draw a front view, both side views and top viewof the object shown in Fig. 2^1. Fig. 242 shows the required views of the object.The edge ab which is visible in the right side view will not make the understanding of the view moredifficult. Whenever the view is so… … Fia. 241. is hidden in the left side view and therefore isrepresented by the dash line cd. It may often be possible to put in the dimensionlines within the views, when the object is not of acomplicated nature, and when the dimension lines kinds: i, parallel to the lengths of the differentparts of…
Mechanical drawing · Machine design
