Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 205

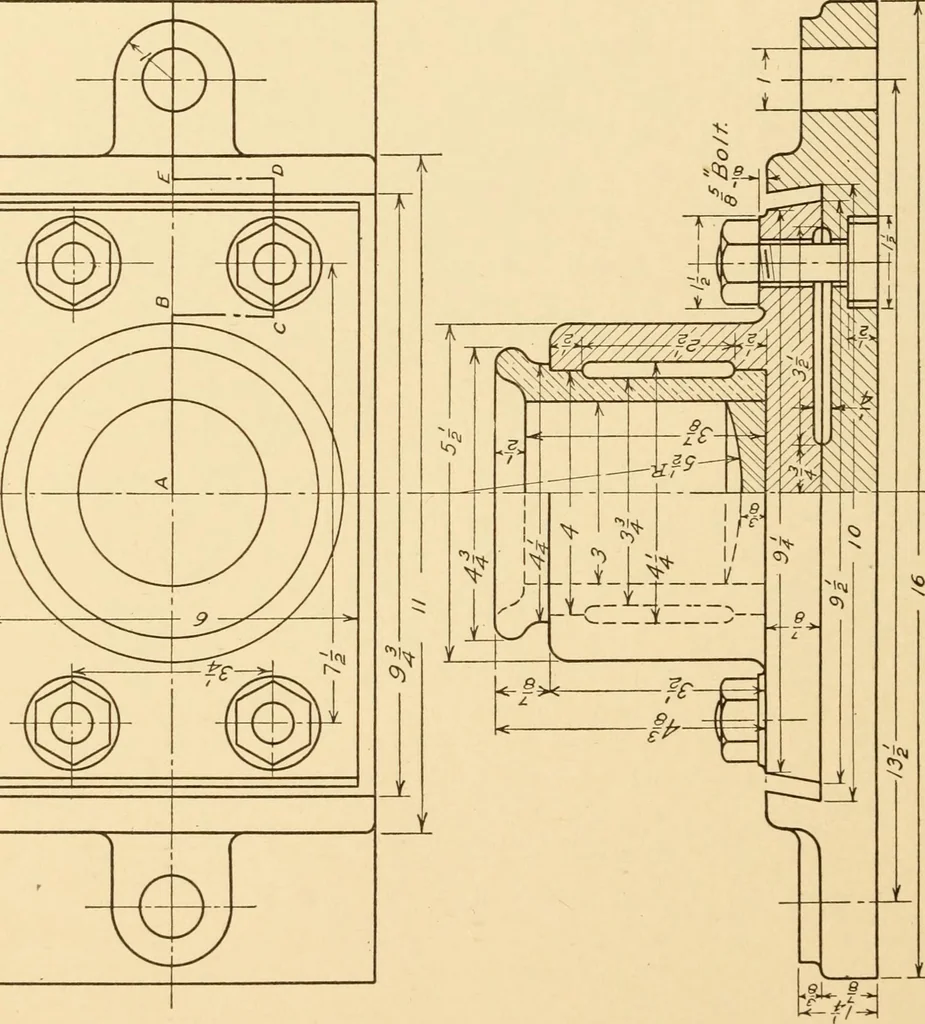

^ … PROBLEMS AND STUDIES 195 PROB. 174, Fig. 324.—Make detail working drawings of the STEAM KETTLEparts, PROB. 175, Fig. 324.—Make an assembly working dra^ving of the STEAM JACK-ETED KETTLE. Draw sectional elevation or half section. Such dimensions as arenot given are to be supplied by the student. The…
Machinery
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
