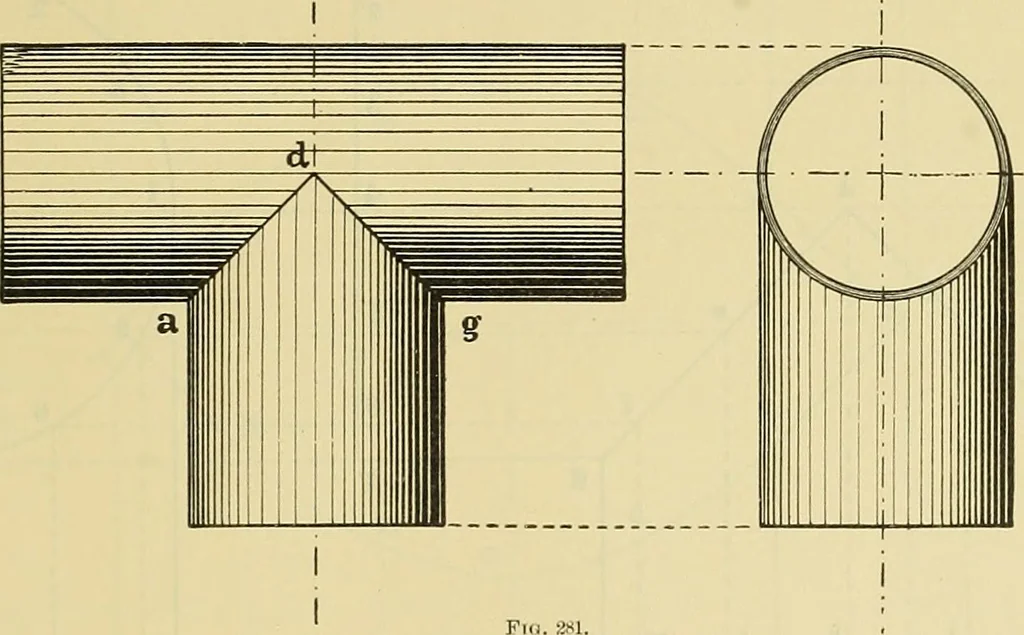

S DRAWING AND DESIGN. 165 To draw the pattern of a tee-pipe in which allbranches are of cqtial diameter. In Fie. 281 is shown the front view and the sideview of a tee-pipe. It is made by the intersectionof two cylinders of equal diameters; the section of The greater the number of these divisions… … Fid. 2H1. the cylinders is represented in the front view bytwo 45-degree lines, ad and dg. To develop the pipes divide the circle in the endview, Fig. 282, into any number of equal parts, inthis case let it be twelve parts. the line 44 just meets the lines of the section inthe point d. The line 55…
