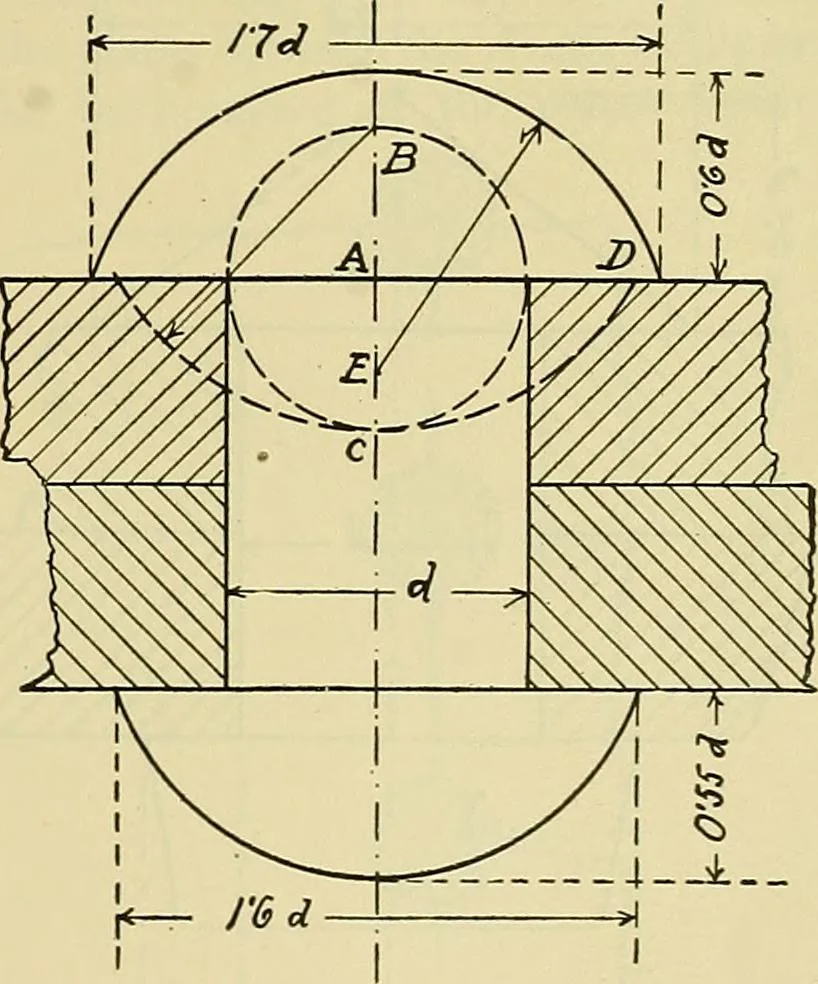

nes. The injury due to punching, when the plates havenot been cracked by the process, may be remediedby annealing them after punching; the ill effect ofpunching may also be removed by punching theholes ys smaller in diameter than the required sizeof the hole, which may then be completed by… … Fig. 361. Rivets are made in different forms; that mostcommonly employed being of a spherical or cup headform, as illustrated in Fig. 361 ; both parts of thisrivet show the spherical head. 244 ROGERS DRAWING AND DESIGN. The rivet shown in Fig. 362 has a conical head,the lower part showing a pan…
