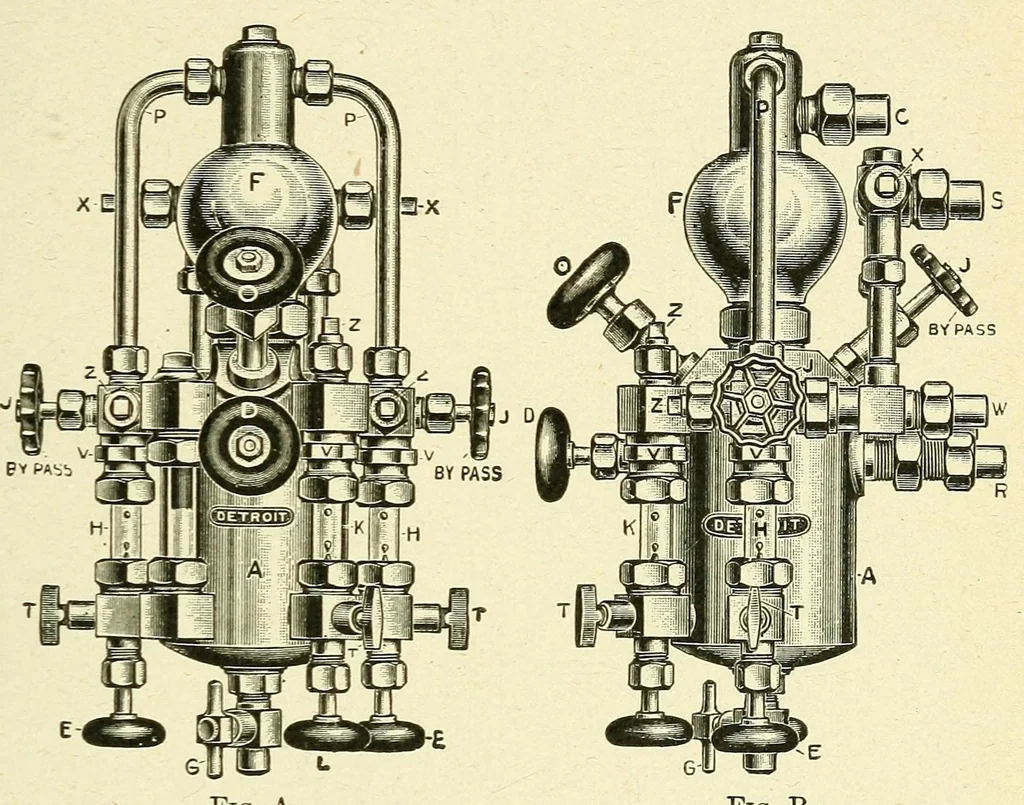

259 LOCOMOTIVE APPLIANCES. boiler and communicating with the two tallow pipes, as shown in Fig. As soon as the throttle is opened, an extra current of steam from the dry pipe is ad- mitted into the tallow pipes. This, it is claimed, … Fig. A. Fig. B. Detroit Triple Feed Locomotive Detroit Triple Feed Locomotive Lubricator with Tippett Attachment. Lubricator with Tippett Attachment. (Front View.) (Side View.) C — Boiler Connection. ZZZ — Automatic Safety Valves. JJJ — By-Pass Valves to Right and F — Condenser. A — Oil Reservoir.…
