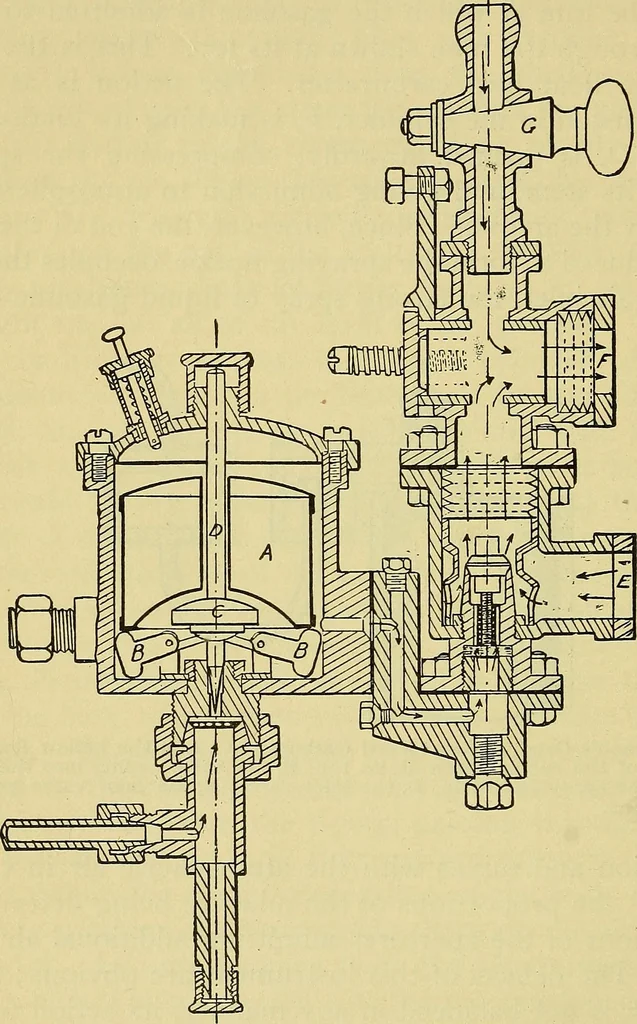

so as torender the machine useless. Largely from the considerationsjust noted, later types of the float feed carburetter have been con-structed with a very elaborate and reliable adjustment to securethe maintenance of the desired level and the certain action of the 246 SELF-PROPELLED VEHICLES.… … Fig. 168.—The Longuemare Float Feed Carburetter. A is the float; B, B, the weightedlevers controlling the needle valve; C, the weight holding the needle valve closedwhile the lever is right in the float chamber; D, the spindle of the needle valve; E,air inlet; F, pipe communicating to combustion…
