Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 275

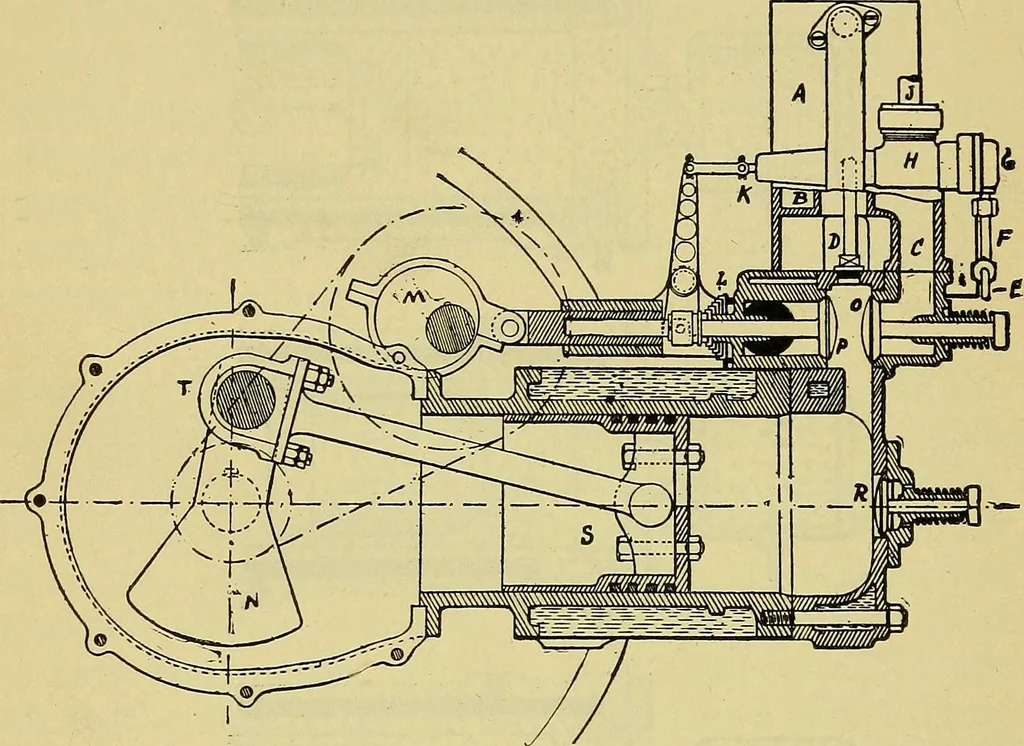

LES. ture required for exploding the charge. On the suction strokeof the piston, air is drawn into the combustion chamber of thecylinder through the ordinary poppet valve opening direct toatmosphere. At the same time, also, oil spray is forced throughthe atomizing nozzle directly into the hot… … Fro. 1T9.—Roots1 Kerosene Oil Motor for Vehicle Use. Sectional view showing the hottube ignition, oil, vapor and air inlet and reciprocating parts. A is the vaporizingchamber surrounding the chimney of the hot tube, D. The eccentric, M, on the camshaft actuates the exhaust valve, P, held in place…
Automobiles
