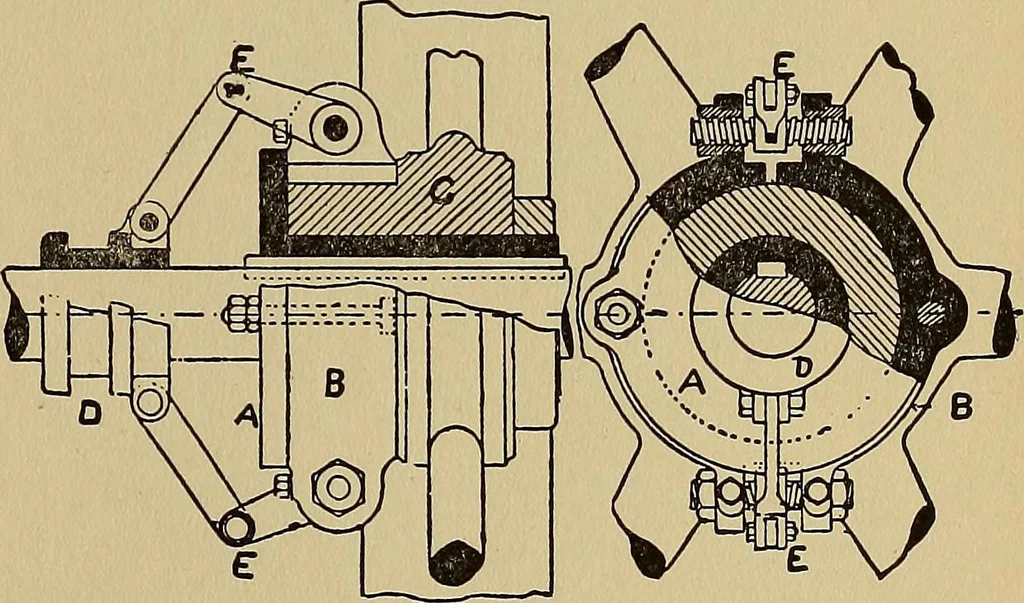

♦T^l* E ><T >^-L ^ i<- L ^ T >i* Fig. 193—Spiral-jaw Detachable Coupling. … Pig. 194—Band Friction Clutch. the shaft, and that the wheel or pulley will onlyrotate when the band, B, is tight on the boss, C.When used as a shaft coupling the boss, C, is pro- 106 MECHANICAL DRAWING longed and keyed to one of tlie shafts, the sleeve,A, being keyed to the other. Cone Friction…
