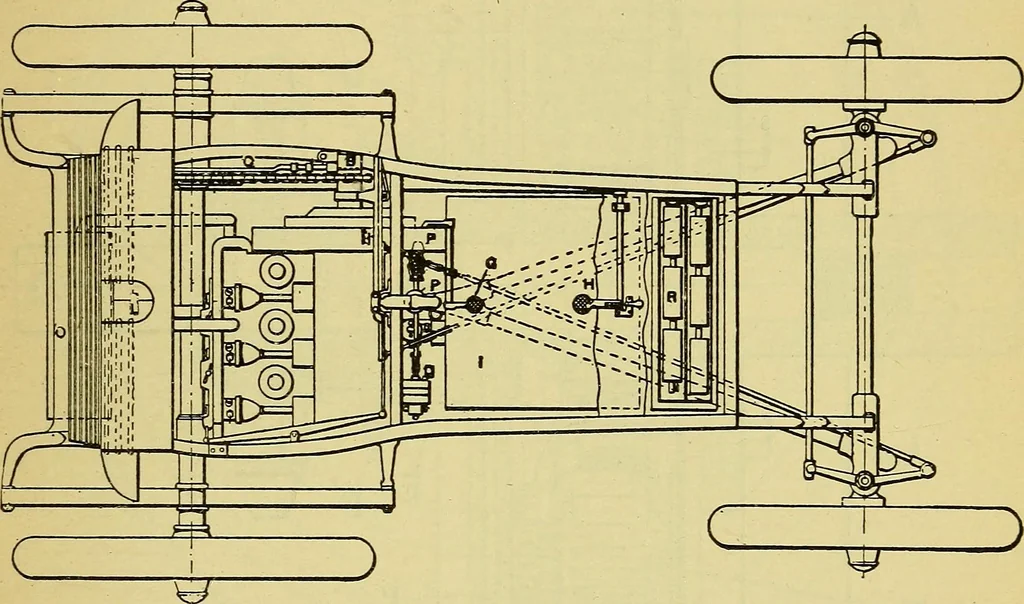

, P, and their actuating levers, M, of which the func-tions will be described later. Encircling the planet gears, A,is an internal gear, X, attached to the slow-speed ring, B, whichis supported upon the disc, E, by projecting lugs; while the disc,E, in turn, is journaled so as to remain concentric… … Fig. 312.—Plan View of Duryea Three-cylinder Car. B, bearing for speedgear; C, distance-rod from rear axle for taking up the pull of the chain;D, the magneto-generator; G, pedal for operating the reverse clutch;H, brake pedal; I, gasoline tank; P, central single control lever; R, 6-cellbattery.…
