Engelman's autocraft; being an instructive study of the automobile; its care and management; how to drive; locating troubles and repairing them; with chapters exploiting some of the latest devices used in automobile construction (1914)
Engelman, Roy Albert, b. 1889 · Cincinnati, O., The American chauffeur publishing co. · leaf 142

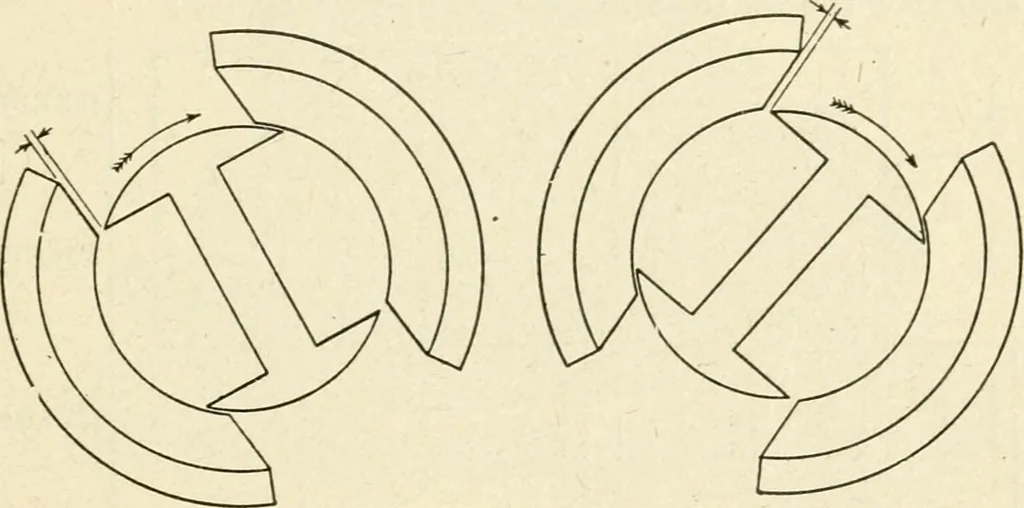

metallically with the distributing carbons (68),which, as they rotate inside of the distributorbody, deliver the high-tension current to the brasssegments and up into the cables, which in turncarry the current to the spark plugs. The internalelectrode of the spark plugs is insulated and thecurrent… … Fig. 5a—Advanced Spark. Fig. 5b—Retarded Spark. (Mea Magneto: Relative position of armature andmagnets at the moment of sparking.) case there is a broken or improper connection toground through the spark plugs. The springleading from the terminal of the high tensioncarbon holder connects with a…
Automobiles
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
