Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 195

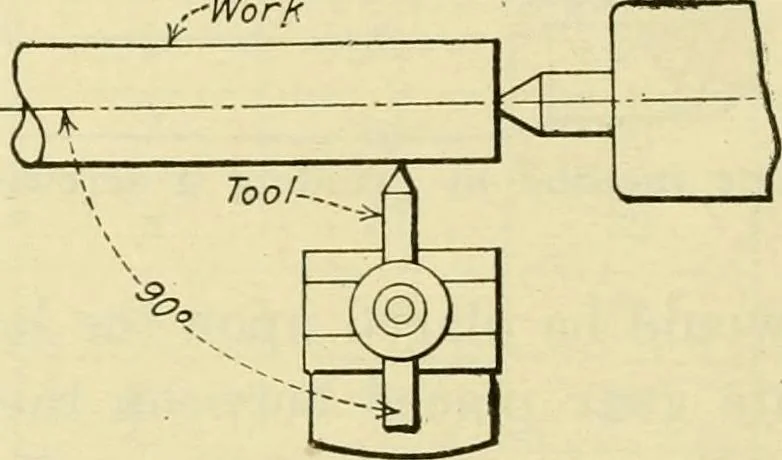

point of the tool isground until it mil just fit into the indentation at the endof the gauge. By holding the tool and gauge up to thelight it is possible to get a very close fit. 194 Shop Practice for Home Mechmiics The tool is then placed in the tool post and adjusted sothat it Mali be at exact… … Fig. 228—How the screw-cutting tool should be set in the lathe this point it is well to mention that a thread is not madewith one single cut of the tool. The first cut should bevery light, and with the splined nut loose and the carriagestill, the cross feed is adjusted until the tool ^^dll justfeed…
Machine-shop practice · Handicraft
