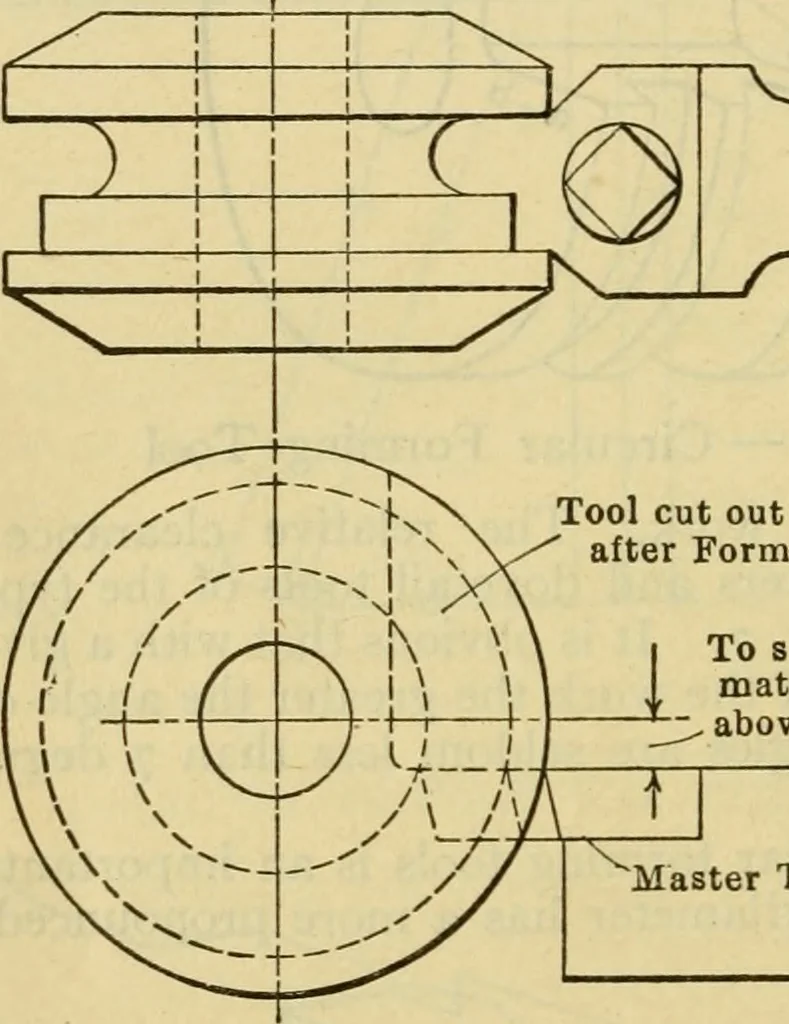

l type of tool so thatthe contour of its cutting edge is such as to produce correct work, theamount a circular tool is cut below center, as at c in Fig, 8, and theclearance angle of a dovetail tool as at A, Fig. 7 must be known.Thus, referring to Fig. 8, the forming tool shown cuts two… … Tool cut out hereafter Forming To suit amount Auto-matic Tool Holder isabove Center. Master Tool Fig. 10. — Finishing a Circular Tool cutter being milled below center an amount represented by c) thefollowing formula may be applied: Suppose the depth of cut in the work represented by o to be…
