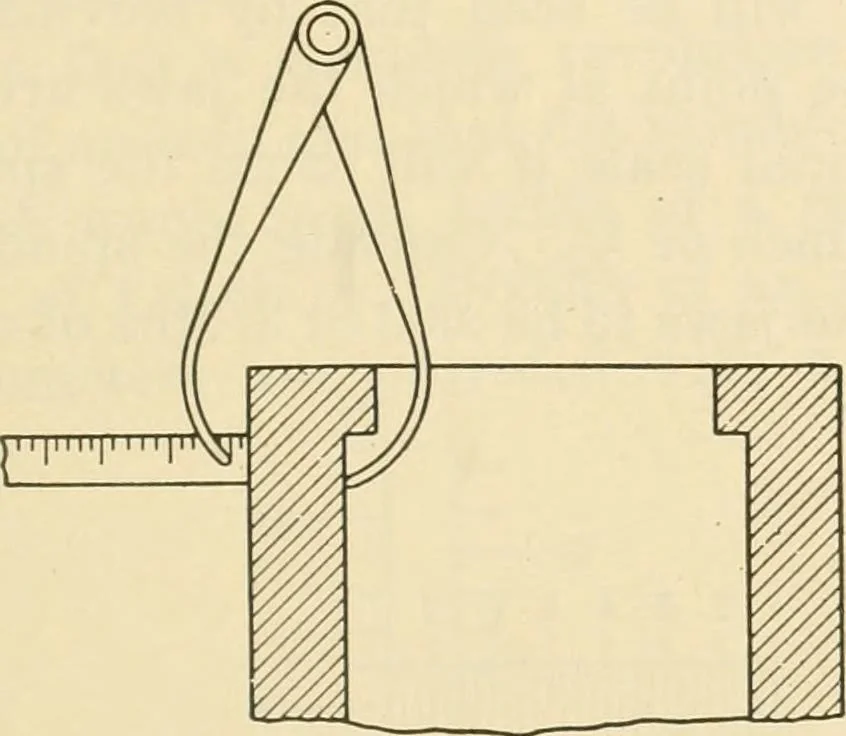

h a shoulder is shown in Fig. 105. Afterthe calipers are removed, the distance between the points Mecosuring Instruments 93 is measured and the difference between this and the dis-tance from the ontside wall of the cylinder to the calipers *point is the thickness of the wall. The micrometer, as its… … Fig. 105—How the wall of a cylinder with a shoulder can be measured one upon the movable tliimble which either advances orrecedes, according to the direction it is turned, and theother at right angles to this upon the arm that projectsfrom the jaws. The screw which causes the jaws of the
