Mechanical drawing. Elementary and advanced (1910)
Reid, John S. (John Simpson), 1856- · New York, J. Wiley & sons; [etc, etc.] · leaf 276

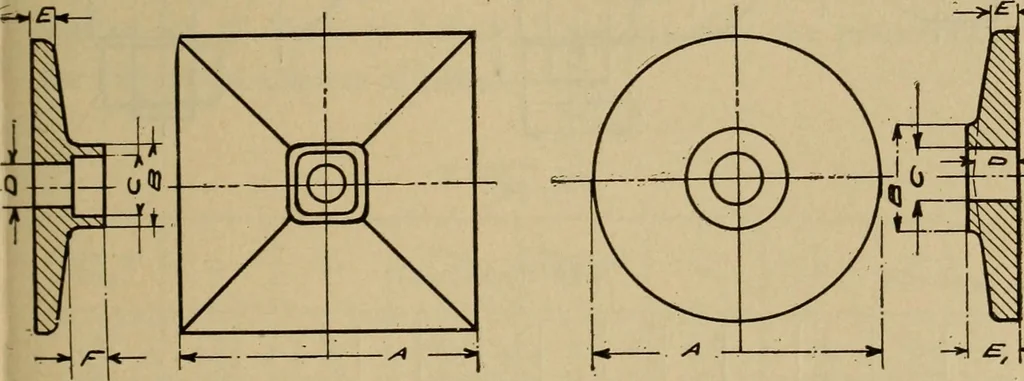

Fig. 345. Fig. 345 shows an example of a coil spring for a steam safety-valve with its spindle. Cast-iron Flanges.—Figs. 346 and 347 show drawings ofcast iron flanges of ordinary design. Their correct proportionsare given in Table 10. … Fig. 346. Fig. 347. Chains.— Fig. 348 shows a drawing of a common end linkand narrow shackle used for general purposes. Table 11 givesthe United States Navy standard proportions. 262 MECHANICAL DRAWING. TABLE 10. PROPORTIONS FOR FLANGES. Dia. Dia. of A 5 C Z? E F of A B C D E Bolt. Bolt. ,, // //…
