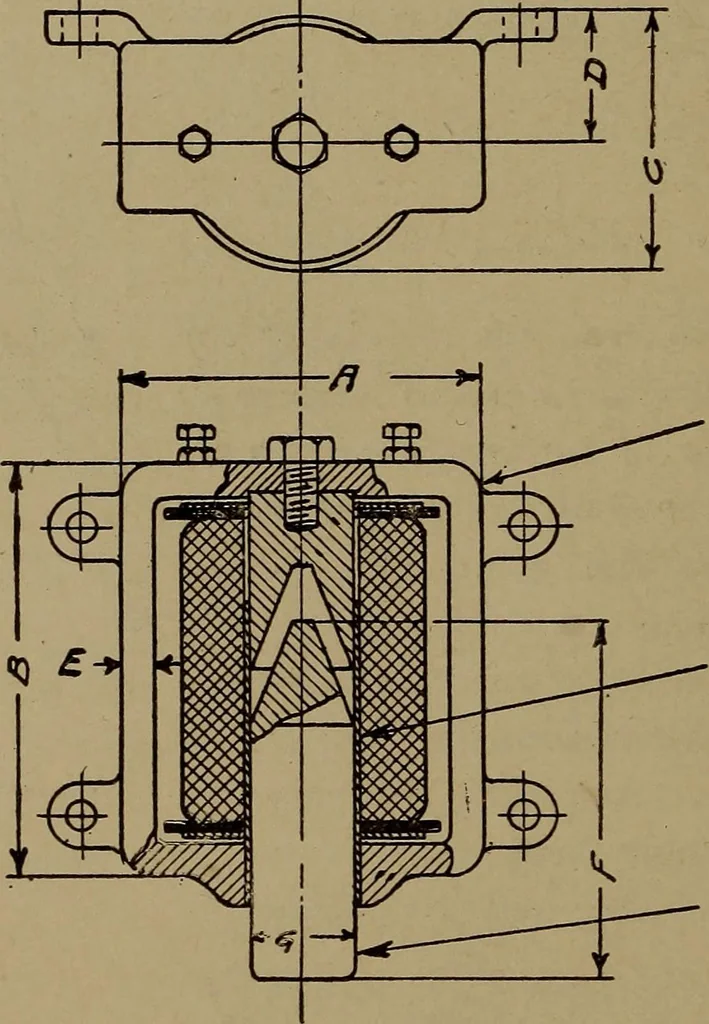

due to attraction between the plug andthe plunger is the same in both cases. In using equation (25) for cone-plunger magnets the correctresult will be obtained if A is the cross-sectional area of the Fig. 20. Cone Plugand Plunger 277 38 ELECTROMAGNETS AND COILS TABLE VI Dimensions of Standard… … ^. /. r^AME 3^^3S TU3//V<^ C.^.I. 7=^Li/r/^s;e Illustration Referring to Table VI plunger below the cone and / is the perpendicular distance betweenthe cone plug and the plunger. Cone Plunger vs. Flat Plunger. Curve E in Fig. 16 is thepull curve of a magnet exactly the same as the one in curve…
