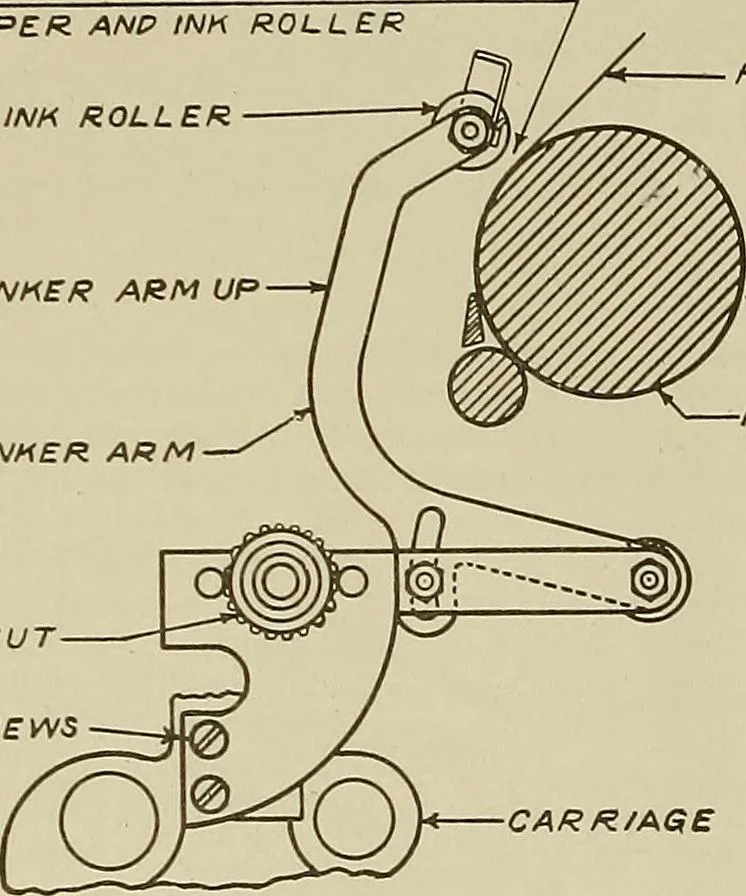

ing pawls spring. 29. Inker Lever Adjustment. The platen top should now be replaced and the inkerlever and bracket fastened on the inker plate with the thumb nut. Should the locationof the inker plate change, for some reason, Figure 41 shows the proper adjustment of theinker lever, which in turn… … PAPER INKER ARM CARRIAGE Fig. 41 30. Line Feed Magnet. Press the magnet yoke upward until the platen rotates andadjust the plunger rod so that both the line feed pawl and the stop pawl are meshedfully with the teeth of the ratchet at the same time the detent roll is resting betweentwo of the teeth…
