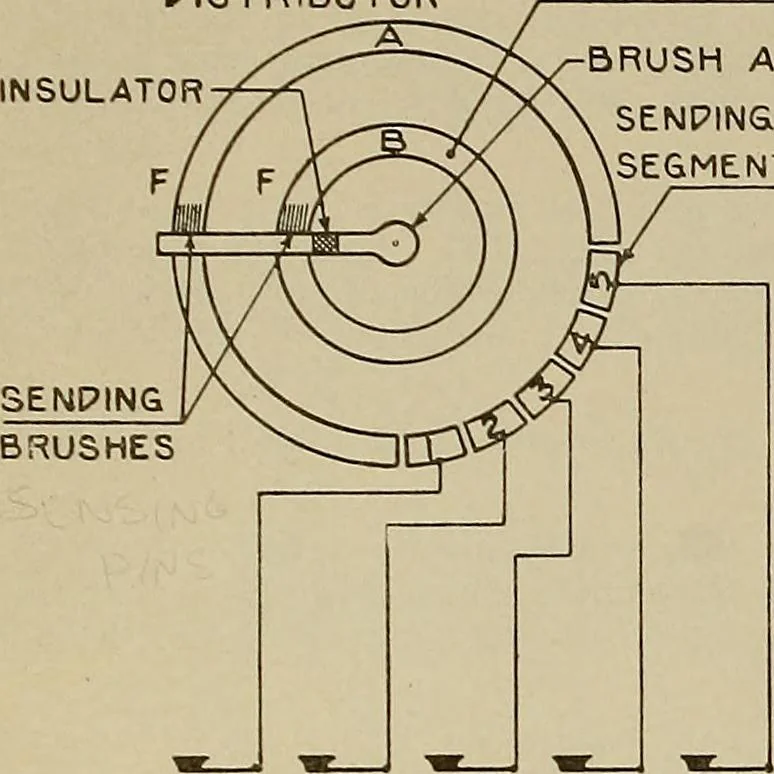

re represents the sending station, the right hand figure the receiv-ing station. At each end is shown a distributor consisting of two concentric metallicrings, which are insulated from each other, the outer one being divided into six segments,which also are insulated from each other. Brush arms… … RECEIVINGPISTRIBUTOR BRUSH INSULATOR ■t 2f 3t 4t. rf KEYS GENERATOR
