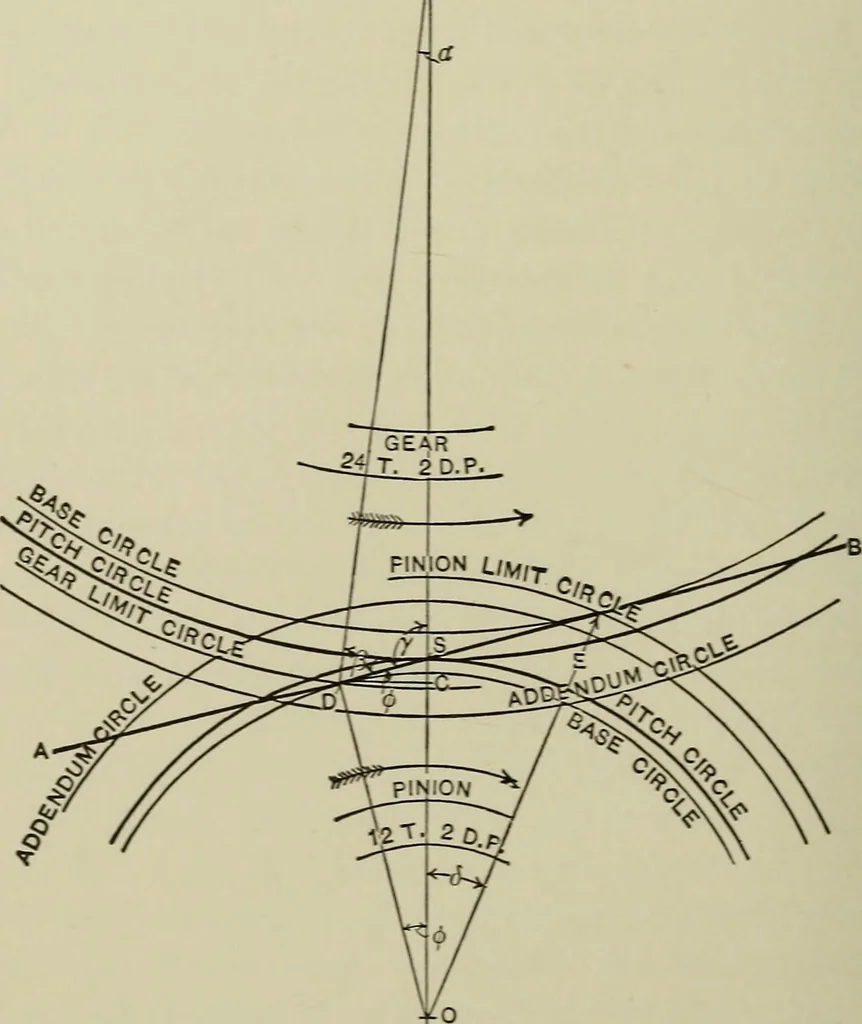

ts are D and E,respectively, and the limit circles are shown passing throughthem. It will at once be seen that, as far as the pinion is con-cerned, no interference is to be anticipated, since the addendumcircle lies well within the Kmit circle, but a considerable shorten- 114 SPUR GE.\RIXG ing of… … Machinery Fig. 5. Diagrammatical Lay-out for the Derivation of Formulas It will, therefore, be seen that if standard teeth are to beused, it is necessary to redesign the gears, adjusting the num-ber of teeth and pitch so that the addendum circle and limitcircle shall at least coincide. The best…
