Spur and bevel gearing; a treatise on the principles, dimensions, calculation, design and strength of spur and bevel gearing, together with chapters on special tooth forms and methods of cutting gear teeth (1914)
New York, The Industrial press; [etc., etc.] · leaf 136

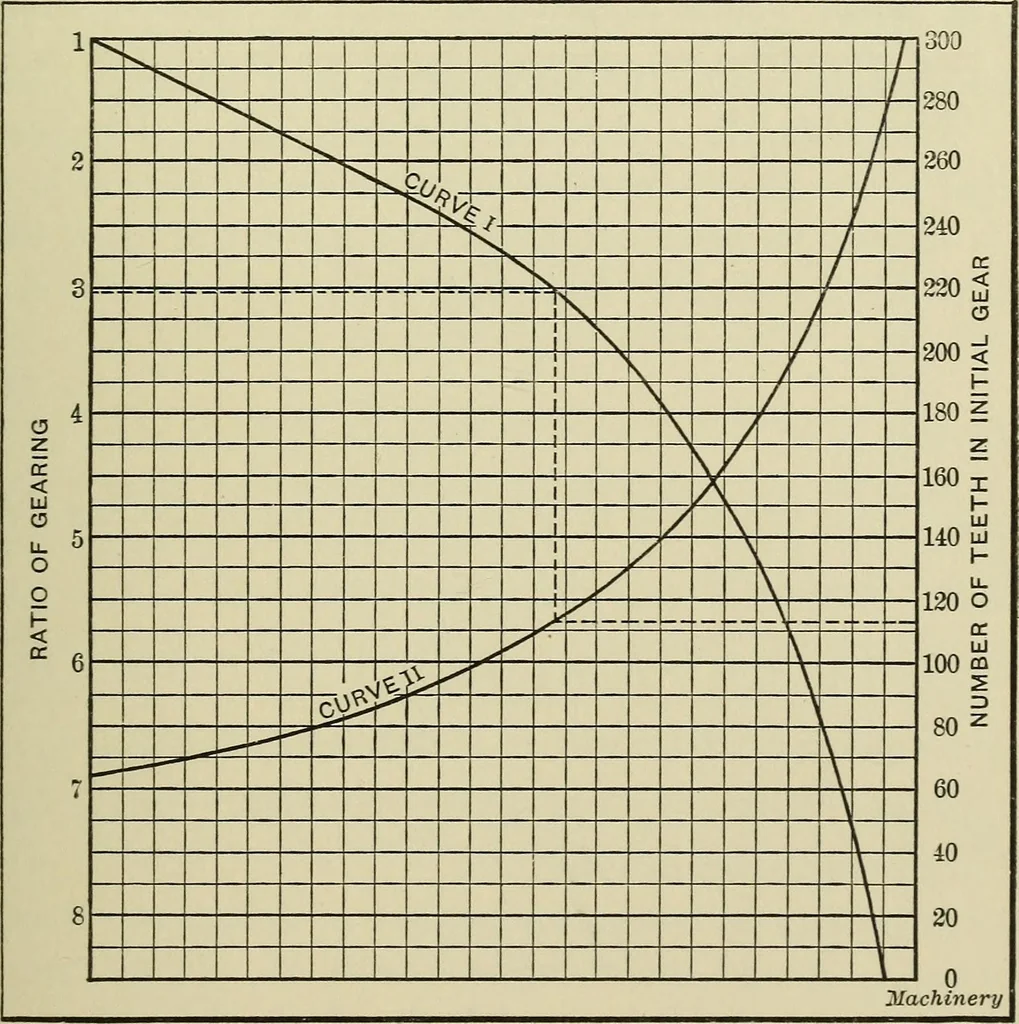

volute. This looks promising, and NOISY GEARING 121 in some cases has been adopted, but it is an unfortunate factthat involutes of a given angle of obliquity will work only withothers having the same angle; consequently 20-degree involuteswill not work with the standard i4|-degree involutes. It,… … Fig. 8. Chart for finding Smallest Number of Teeth in Large Gear forInternal Gearing, with i4j-degree Pressure Angle increased pressure angles is that, owing to the greater inclinationof the path of contact, the pressure tending to force the gearteeth out of mesh is greatly increased; in other…
Gearing
