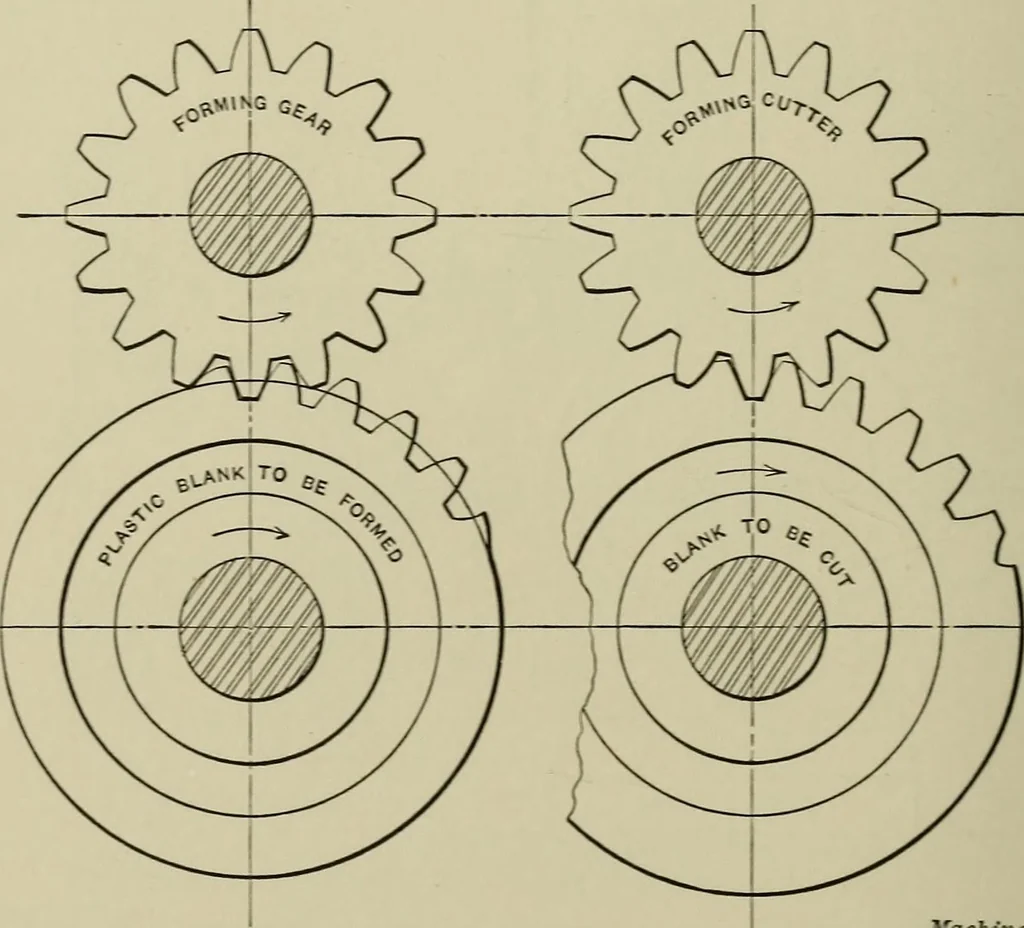

the tool vnW. be at T^; when the tooth is ath, the tool, at T^, will have cut down about half the length of theface, as shown; when the tooth is at a, its outline will have beencompleted on that side by the tool, at T^. The way in which theinvolute is generated \sdll be easily understood, when it… … Machinery Fig. 5. The Molding-generatingPrinciple Applied to rolling theProper Tooth Form in a PlasticGear Blank Fig. 6. The Same Principle em-ploying a Cutter having a Shap-ing Action for Cutting Teeth in aSolid Blank The de\ice is incomplete, as shown, in that no pro\ision is madefor indexing. In…
