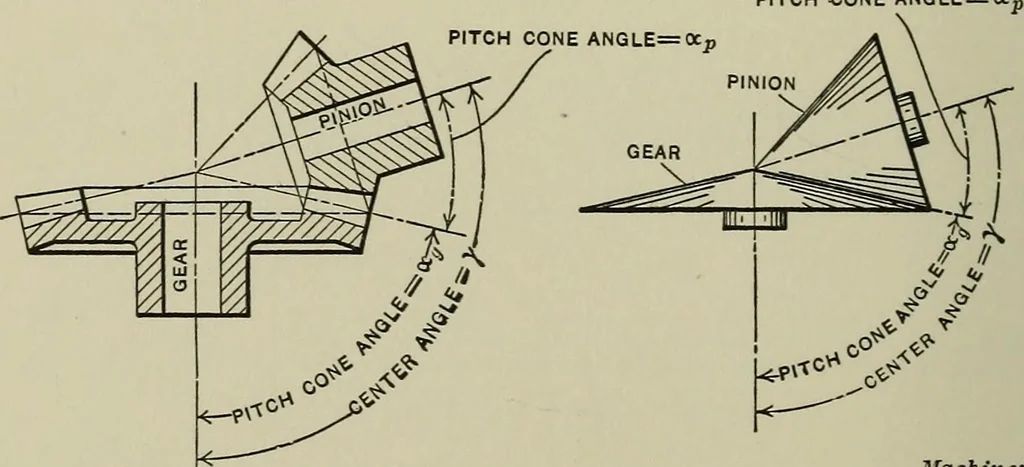

y. CHAPTER X BEVEL GEAR RULES AND FORMULAS Bevel Gear Definitions.—Bevel gearing is used for transmittingmotion between shafts the center lines of which intersect. Theteeth of bevel gears are constructed on imaginary pitch cones inthe same way that the teeth of spur gears are constructed… … Machinery Fig. I. Bevel Gear andPinion Fig. 2. Pitch Cones of Gears inFig. I of the gear. In Fig. 2 is shown (diagrammatically) a pair ofconical pitch surfaces driving each other by frictional contact.The shafts are set at the same center angle with each other, asin Fig. I, and the base diameter of…
