Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 129

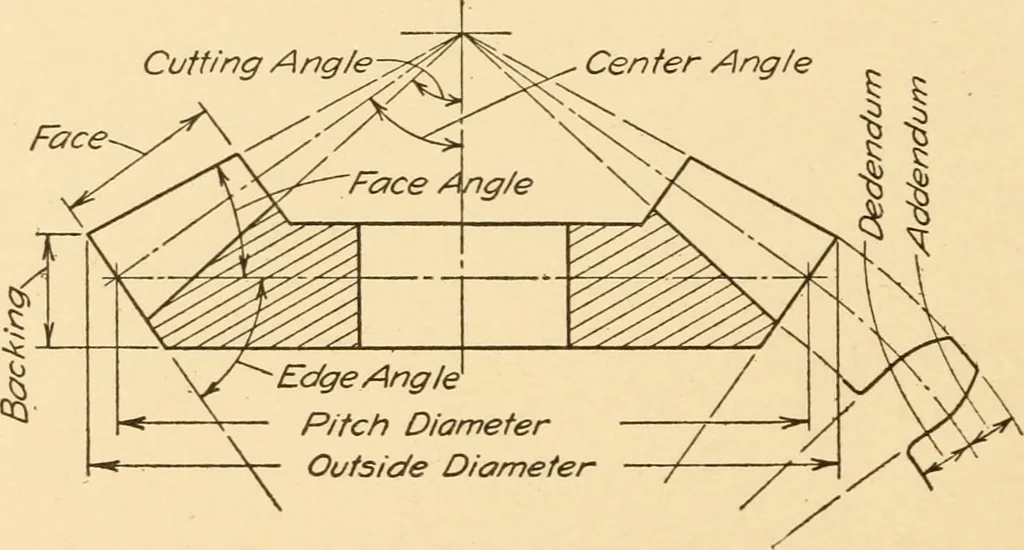

Fig. 206. Bevel Gears. of the same size with shafts at right angles are called mitre gears. Apair of bevel gears is shown in Fig. 206. The shafts may make any anglewith each other. The terms used and the parts of a bevel gear are given … Fig. 207. Bevel Gear Terms. in Fig. 207. Note the location of the pitch diameter and that the ad-dendum and dedendum are measured at the large end of the gear tooth.A bevel gear drawing is shown in Fig. 208. . GEARS AND CAMS 119 58-553/° 5~ GEAR 36 Teeth 5 P/5 ° Involutef all over
