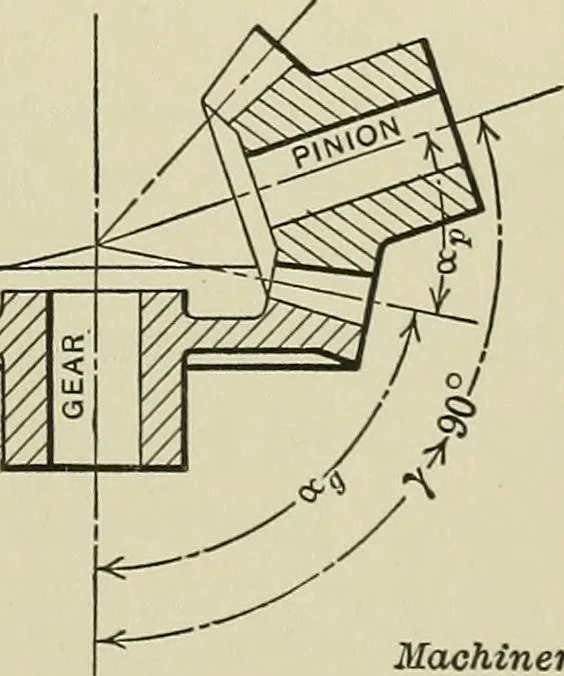

■^^^S Machinery Fig. 5. Acute-angle Bevel Gearing Fig. 6. Obtuse-angle Bevel Gearing other words, the figure shows a case of right-angle bevel gearing.To the special case shown in Fig. 4 in which the number of teethin the two gears is the same, the term miter gearing is appHed;here the pitch cone…
