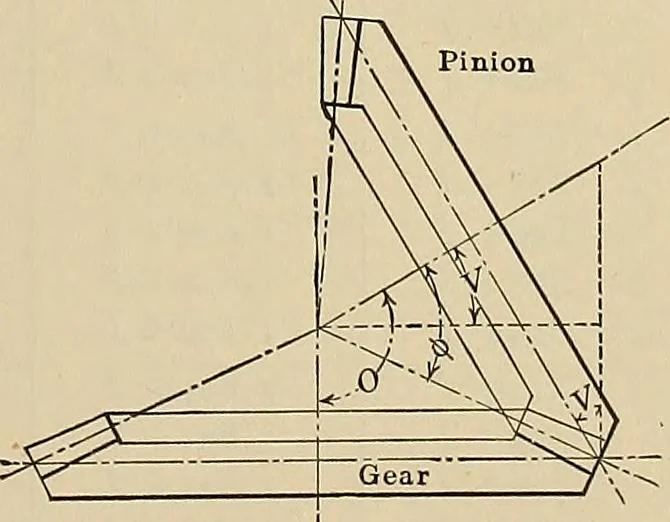

Fig. 2 Shafts at less than 90 Degrees Pinion Fig. I-Shafts at Right Angles Backim … Fig. 3 Shafts at niore than 90 Degrees Figs, i to 3.—Notation of formulas for dimensions and angles of bevel gears. 113 114 HANDBOOK FOR MACHINE DESIGNERS AND DRAFTSMEN Table 3.—Dimensions and Angles of Bevel Gears For notation see page 107, With Shafts at Right Angles Proportion of F 77 n B wheels…
