Spur and bevel gearing; a treatise on the principles, dimensions, calculation, design and strength of spur and bevel gearing, together with chapters on special tooth forms and methods of cutting gear teeth (1914)
New York, The Industrial press; [etc., etc.] · leaf 222

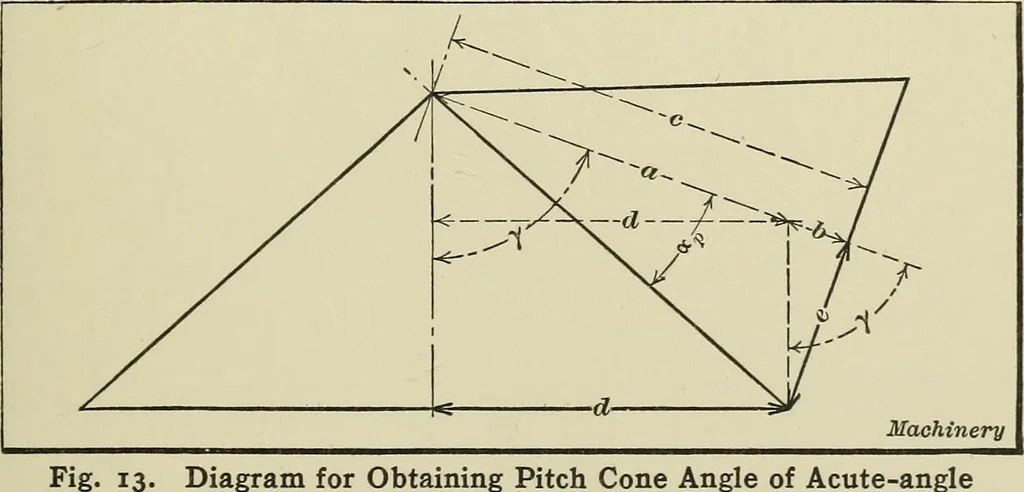

given for each of the six cases of right-angle bevel gearing, miterbevel gearing, acute-angle and obtuse-angle bevel gearing, andcrown and internal bevel gears. Examples are given on sub-sequent pages which show, in detail, the use of the rules andformulas. Derivation of Formulas for Bevel Gear… … 13 Diagram for Obtaining Pitch Cone Angle of Acute-angleBevel Gearing were derived in order to use them, as all that is needed is theability to read a table of sines and tangents. Formulas (5), (6), (7) and (8) are the same as for Brown &Sharpe standard gears. The dimensions at the small end of…
