Spur and bevel gearing; a treatise on the principles, dimensions, calculation, design and strength of spur and bevel gearing, together with chapters on special tooth forms and methods of cutting gear teeth (1914)
New York, The Industrial press; [etc., etc.] · leaf 264

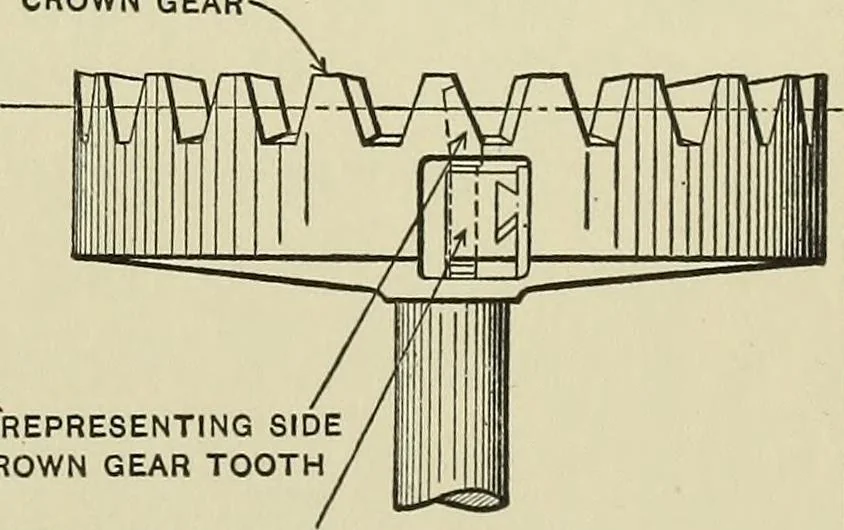

STATIONARY FRAMECROWN GEAR … BLADE REPRESENTING SIDEOF CROWN GEAR TOOTH RECIPROCATING TOOL SLIDE Machinery Fig. 8. The Shaping or Planing Operation applied to the Molding-generating Principle of Forming Teeth of Bevel Gears In practice we have blanks of solid steel or iron to machineinstead of those made from putty or clay, so…
Gearing
