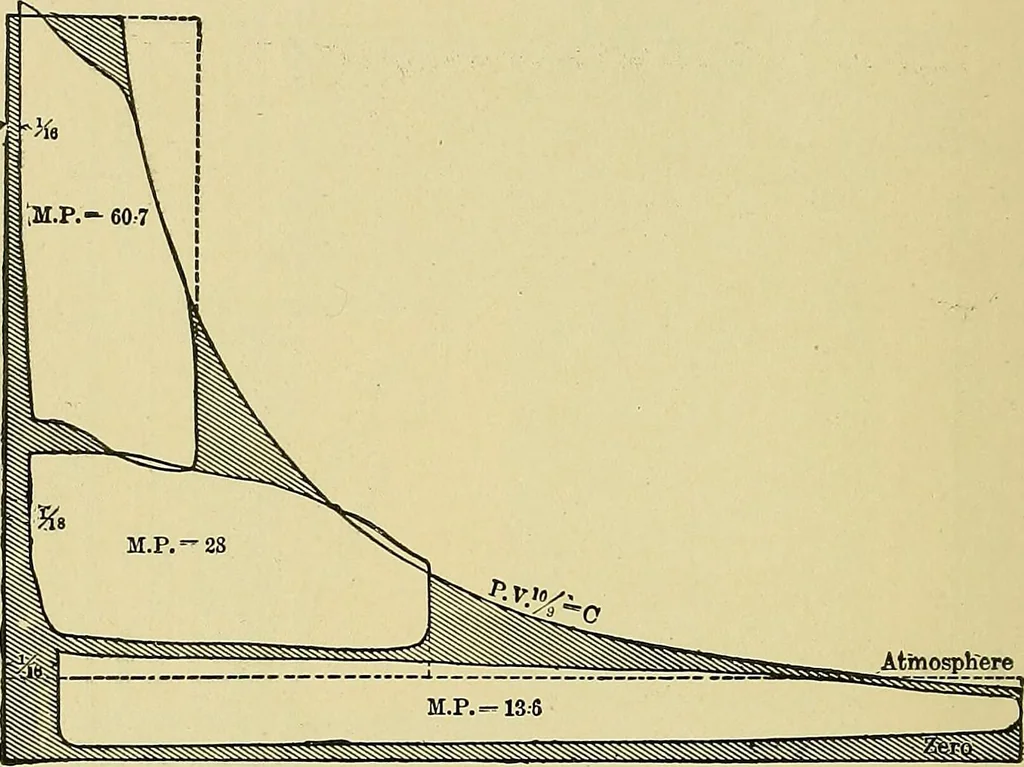

This shows the method of reducing the actual indicator-diagrams to the combined form, and the variations from 226 STEAM ENGINES FOR the ideal expansion-line due to imperfections of the engineas a work of human art. Pressures are measured in poundson the square inch and volumes in cubic feet, actual… … Triple-expansion Diagram. about ■^\ cubic feet of steam enter the high-pressure cylin-der each stroke at a pressure of no pounds per squareinch above vacuum ; it expands nearly adiabatically to 95cubicfeet, is then transferred to the low-pressure, droppingfrom the terminal pressure, 40 pounds in…
