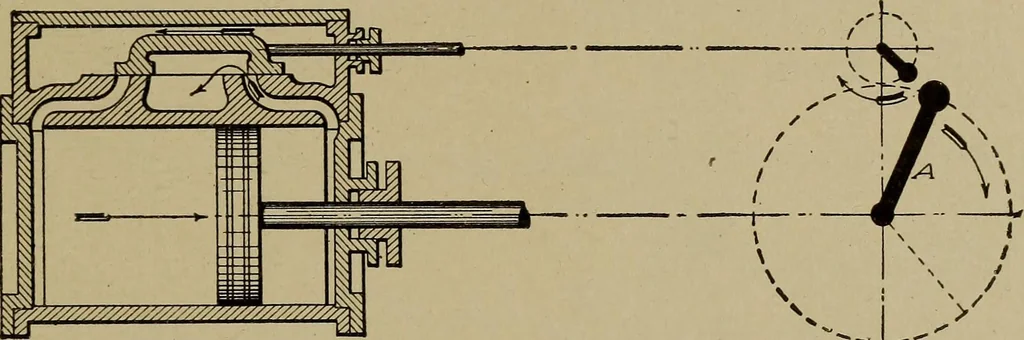

outside lapin order that admission may take place under proper conditions, itis evident that the eccentric can no longer be at right angles to thecrank at the beginning of the stroke, but must be in advance of the VALVE GEARS right-angle point by an amount equal to the- angle EO C, known asthe… … -4- Fig. 8. Valve Position with Steam Port Closed on Head End motion of the piston will cause the valve to move toward its mid-position. Admission continues until the valve returns to the positionshown in Fig. 8. Here the outside lap just closes the left-hand steamport, cut-off takes place, and the…
