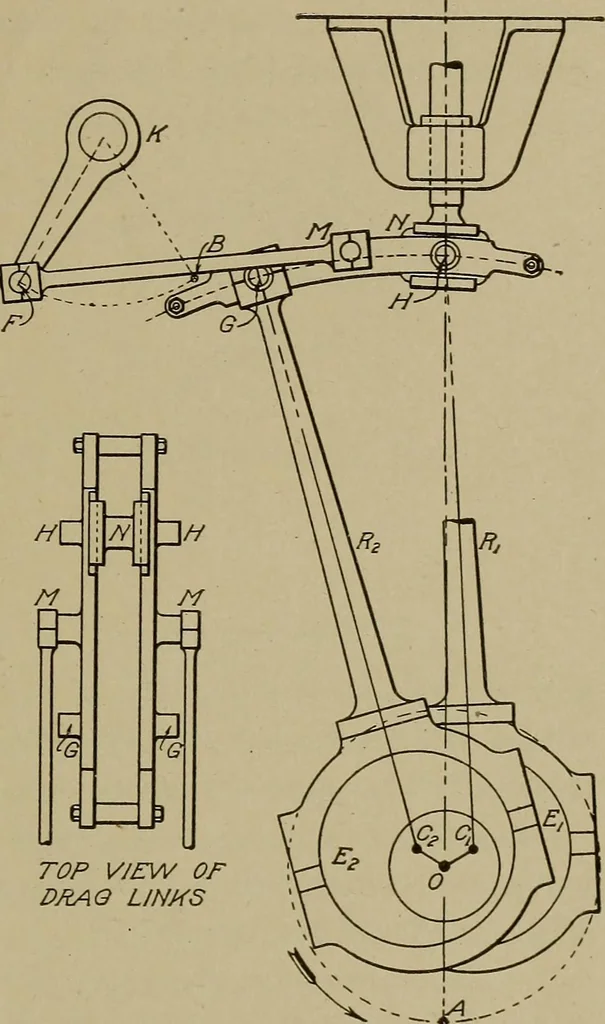

essful application has beenon American locomotives.This gear is illustrated in Fig.52. The two eccentrics Eiand E2, whose centers are atCi and C2, respectively, areshown in their relative posi-tions when the crank OA isat the crank-end dead center.The eccentric rods Ri and R2are connected by forked… … Fig. 52. Stephenson Link Motion link pins, are fitted into the forked end of the eccentric rods, andthe middle one. known as the saddle pin, is fitted into the end ofthe drag links F M. The valve stem has, at its lower end, a pivoted block AT, calledthe link block, provided with slotted sides…
