Steam engines, prepared in the Extension division of the University of Wisconsin (1919)
Shealy, Edward Marvin · New York, McGraw-Hill · leaf 150

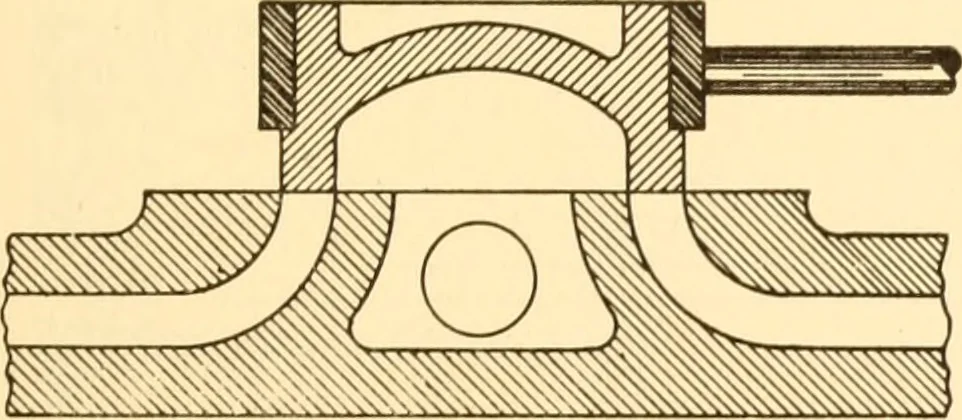

n of the crank and Oe the position of the eccentric. Withthe valve in its mid-position and the piston at the end of itsstroke, steam will begin to be admitted to the cylinder as soon asthe piston starts forward and the valve will remain open untilthe piston has reached the end of its stroke, thus…
Steam-engines
