Steam engines, prepared in the Extension division of the University of Wisconsin (1919)
Shealy, Edward Marvin · New York, McGraw-Hill · leaf 175

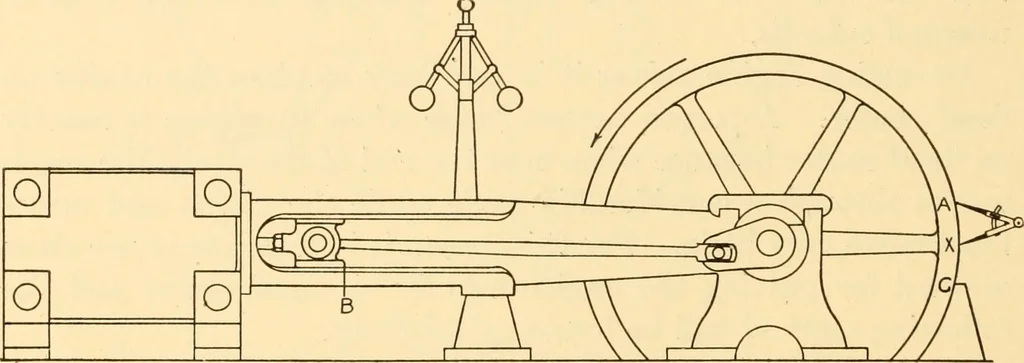

Fig. 96. made with bent end on the rim of the flywheel as shown at Ain Fig. 96, the crosshead still being in such position that themarks on crosshead and guide are together. The flywheelis now turned by hand until the crank is past center and the cross-head has been brought to the same position as… … Fig. 97. will now be as far past center as it was in front of center before.With the engine in this position the tram is placed on the perma-nent mark on the floor and another mark made on the rim of theflywheel, as shown at C in Fig. 97. With a tape measure orpair of dividers find the point X…
Steam-engines
