Steam engines, a thorough and practical presentation of modern steam engine practice (1920)
Ludy, Llewellyn V., 1875-, American Technical Society · Chicago, American technical society · leaf 148

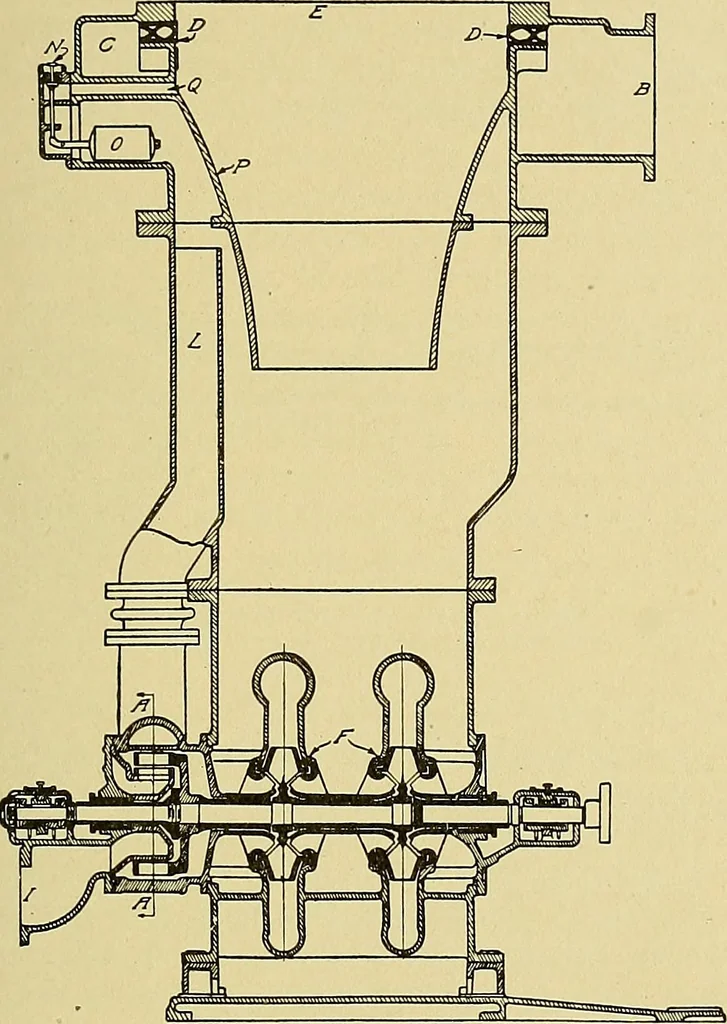

f the Leblanc jet condenser, asmanufactured by the Westinghouse Machine Company. This typeis especially used in the larger steam turbine installations. In thiscondenser steam enters through the large opening E at the top, STEAM ENGINES 131 and the cooling water through B. This water is carried all… … Fig. 81. Cross Section of Leblanc Jet CondenperCourtesy of Westinghouse Machine Company, East Pittsburgh, Pennsylm is intimately mixed with the steam, condenses it, and falls to thebottom of the condenser. From here the water pumps F dischargethe water from the condenser. The air released in the…
Steam-engines
