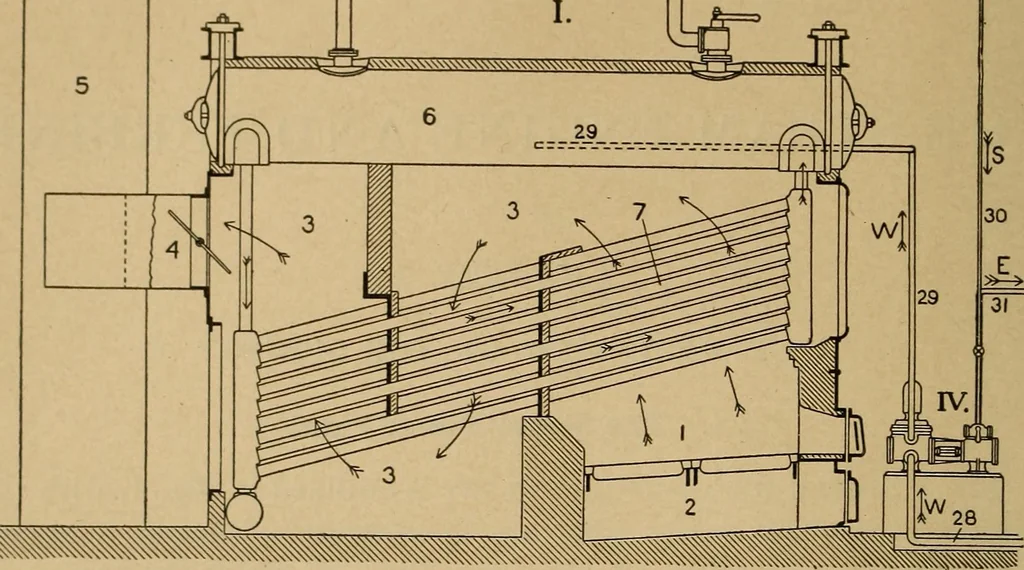

Fig. 1, and this list of names is to be used inconnection with the following description of the working of the plant. (6) The Function of Combustion. — In the operation of thesteam generator two distinct sets of phenomena are involved, those ofcombustion and of heat transfer and evaporation. The… … Fig. 1. — The Steam Plant. A. Boiler and Feed Pump. II The Boiler (Water-tube type). 1. Grate and fire space. 5. Chimney. 2. Ash pit. 6. Boiler shell or drum. 3. Hot-gas spaces. 7. Tubes. 4. Flue and damper. 8. Steam pipe. The Engine (Corliss type). 9. Throttle valve. 15. Crank, 10. Cylinder. 16.…
