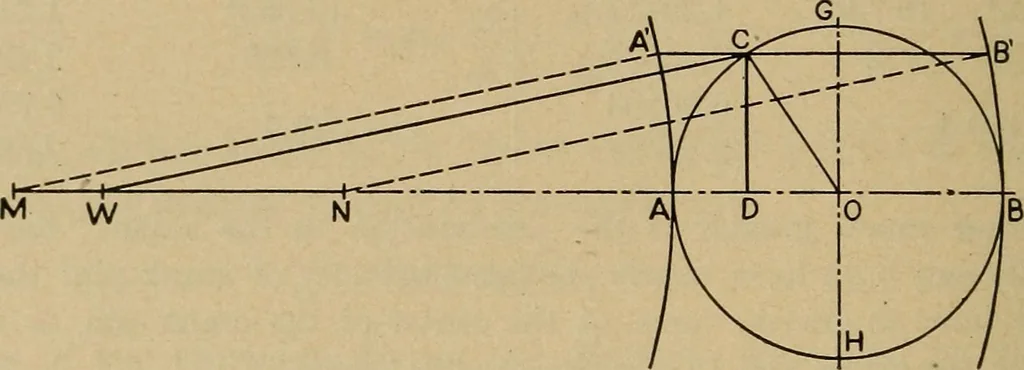

off CW from C as a center. A constructionwhich will give this travel s for any crank position, without the troubleof thus striking off the rod length each time, is made by drawing thearcs AA, BB, tangent to the crank circle, from M and N as respectivecenters. Then for any position of C, it is only… … Fig. 163. — Piston Travel. The analogous construction in Fig. 159 is made by drawing thestraight-line tangents AA, BB: and it appears that the effect of theconnecting rod is to introduce a curvature into these limit lines. Sincethe straight hnes in Fig. 159 may be thought of as arcs of…
