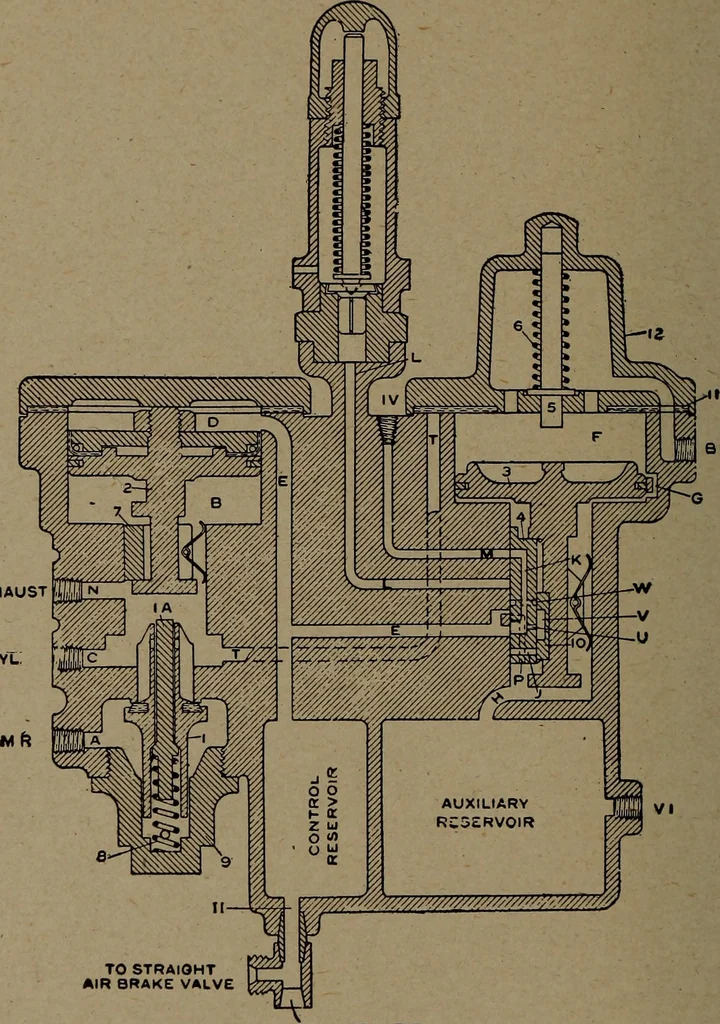

ng main reservoir air to pass up aroundthis valve into the brake cylinder at C until the pressure inchamber B is slightly greater than the pressure in chamberD, when the piston will move upward, allowing the admis-sion valve 1 and 1A to seat, preventing any more air fromentering the brake cylinder… … TO STRAIGHTAIR BRAKE VALVE TO AUTOMATICBRAKE VALVE Fig. 18. Automatic Control Valve, Eelease Position NEW YORK AIR BRAKE 355 pressure, the equalizing reservoir control chamber and cyl-inder and brake cylinder will equalize at about fifty pounds. Figure 20 is a view of the control valve in service…
