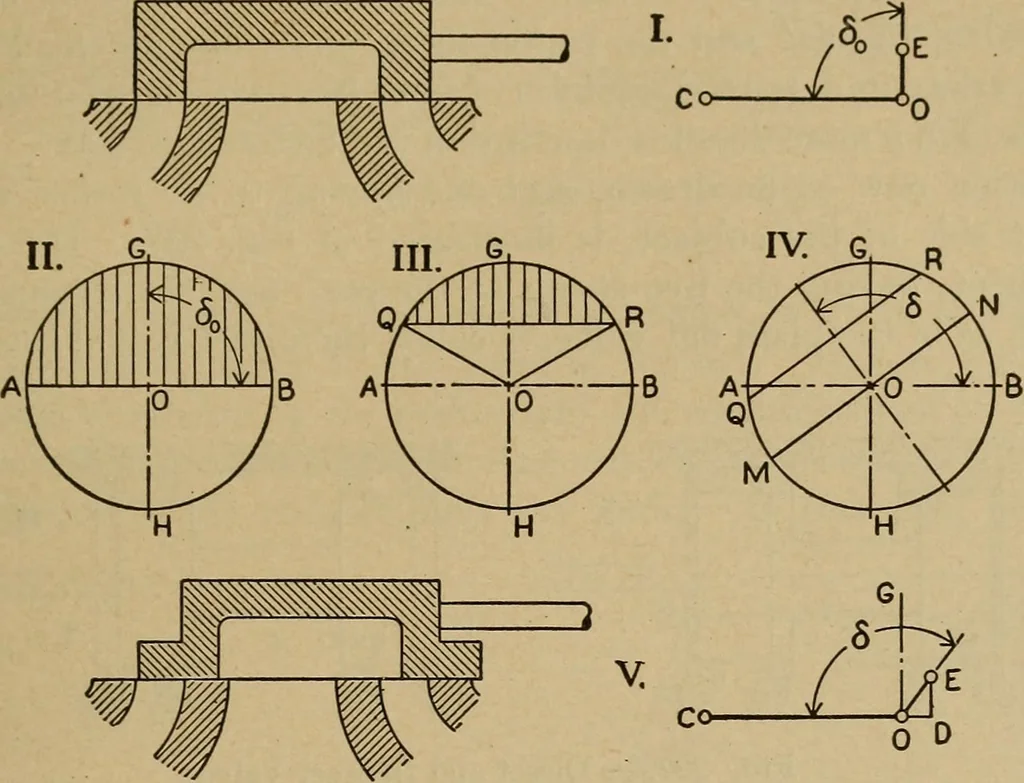

r on. For an autographic diagram, to be drawn by the engine and to serveas a test of the working of the valve gear, especially with releasing § 37 (fc)] SIMPLE SLIDE VALVE, WITH HARMONIC MOTION. 369 gears of the Corliss and similar types, this elliptical curve is the mostconvenient, the motions… … Fig. 226. — Evolution of the Valve. shown at I, where the valve just covers the port when in mid-position,and is driven by an eccentric at right angles to the crank, so that itsmid-position coincides with the dead center. This arrangement hasthe very decided fault that the admission is too long,…
