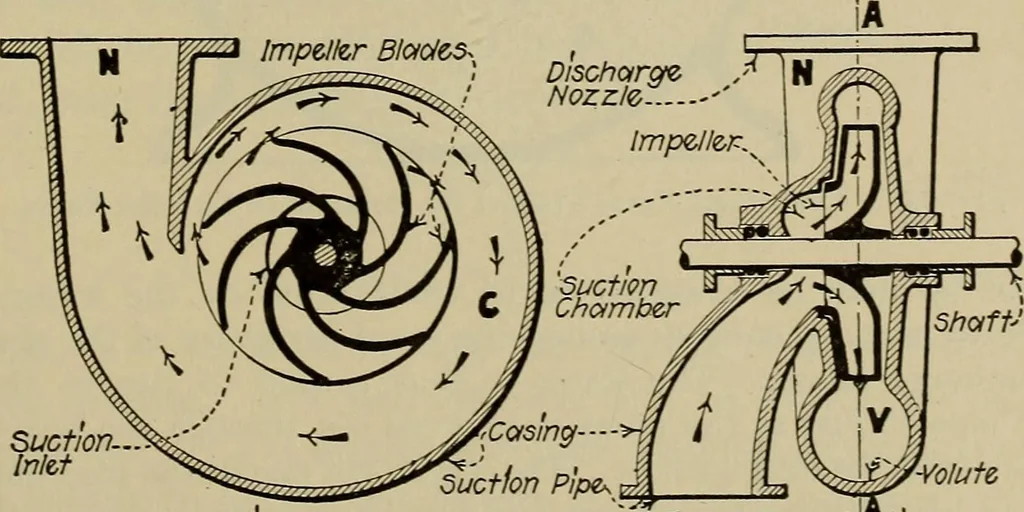

is illustrates the theory of the cen-trifugal pump. 114. The Commercial Cen-trifugal Pump (Fig. 126) ismerely a modification of the ap-paratus shown in Fig. 125. Theimpeller, rotating within the cas-ing, C, corresponds to the rotatingbucket. Water enters the impeller through an inlet holearound its… … Suction...If ■ t II \\ ■YoiufeIL-Trotmvirse section I-Section aaFig. 126.—Single-Stage, Single-Suction Volute Centrifugal Pump water to be thrown outward. Thereby pressure is createdback of each particle of water and the water is dischargedfrom the impeller into the case, C. The contour of the im-…
