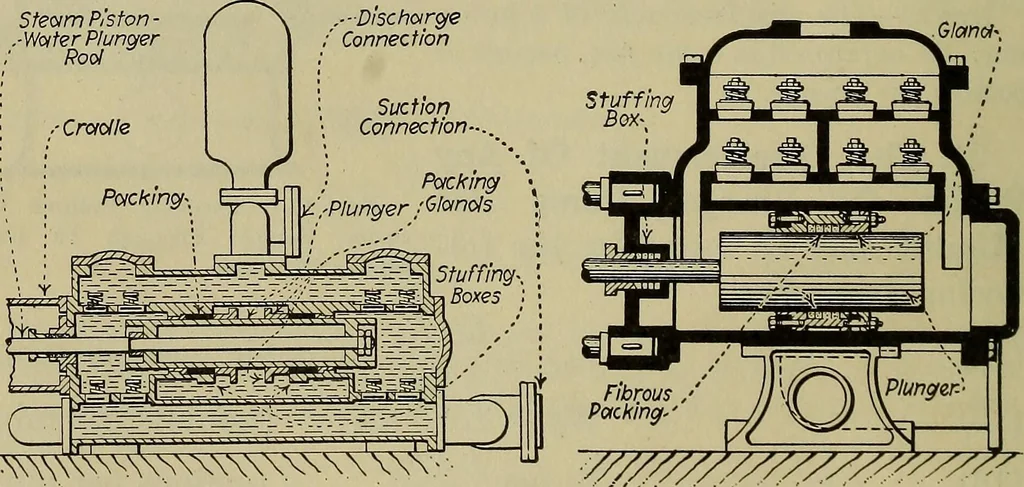

****- suction Inlet- ^mwWx\\\\\\\\\^ ^^W> Fig. 18. -Water-End Of Direct-Acting Steam-Pump With Outside End-PackedPlungers. sectional area of the plunger or piston minus one-half the cross-sectionalarea of the piston- or plunger-rod. Example.—What is the displacement, in cubic feet per minute, of… … \^\<\^\\\X\\\\V\\\\\V Fig. 19.—Water-End Of Direct-Acting Steam-Pump With Outside Center-Packed Plungers. Fig. 20.—Pump-Plunger Inside-Packed With Fibrous Rings. and each of the 2 plungers (this being a duplex pump) makes 50 strokesper min.? Solution.—By preceding Note, the effective plunger…
