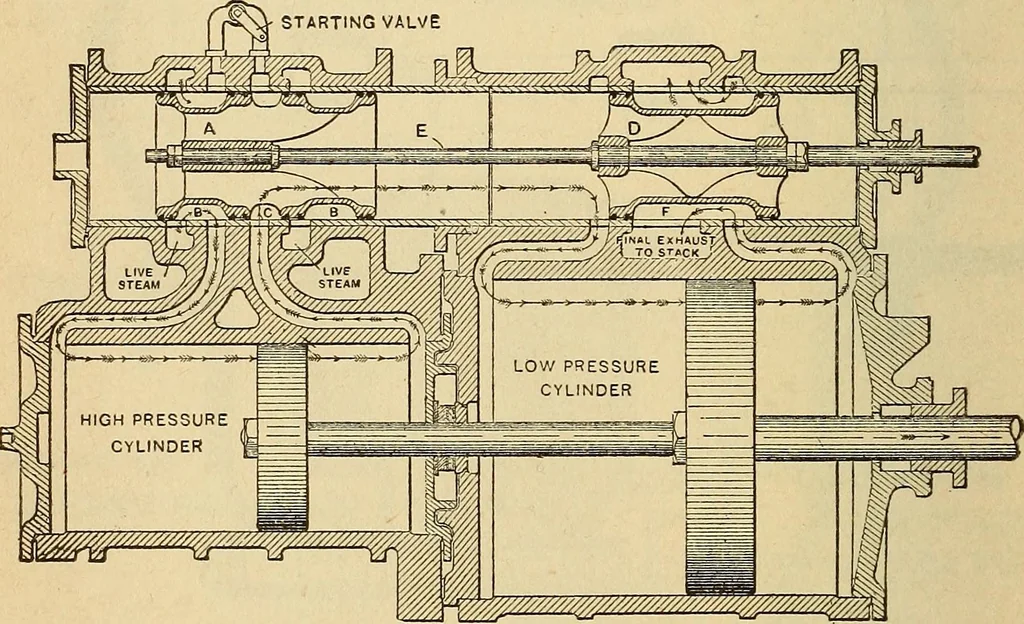

to back end of high-pressurecylinder F only. 3IO LOCOMOTIVE ENGINEERING If steam now flows from front low-pressure cylindercock L, the piston sleeve G is worn and leaking. Starting Valve in Position for Working Simple, Fig.145 shows section through high-pressure valve, steamchest and starting… … STEAM DISTRIBUTION IN TANDEM COMPOUND CYLINDERS Figure 147 For Fig. 141 test, the starting valve S is in positionas shown in -Fig. 145, but having high-pressure valveA on center, by-pass valve M removed. For Fig. 143test, valves A and S are in position as shown in Fig.145, but having by-pass valve…
