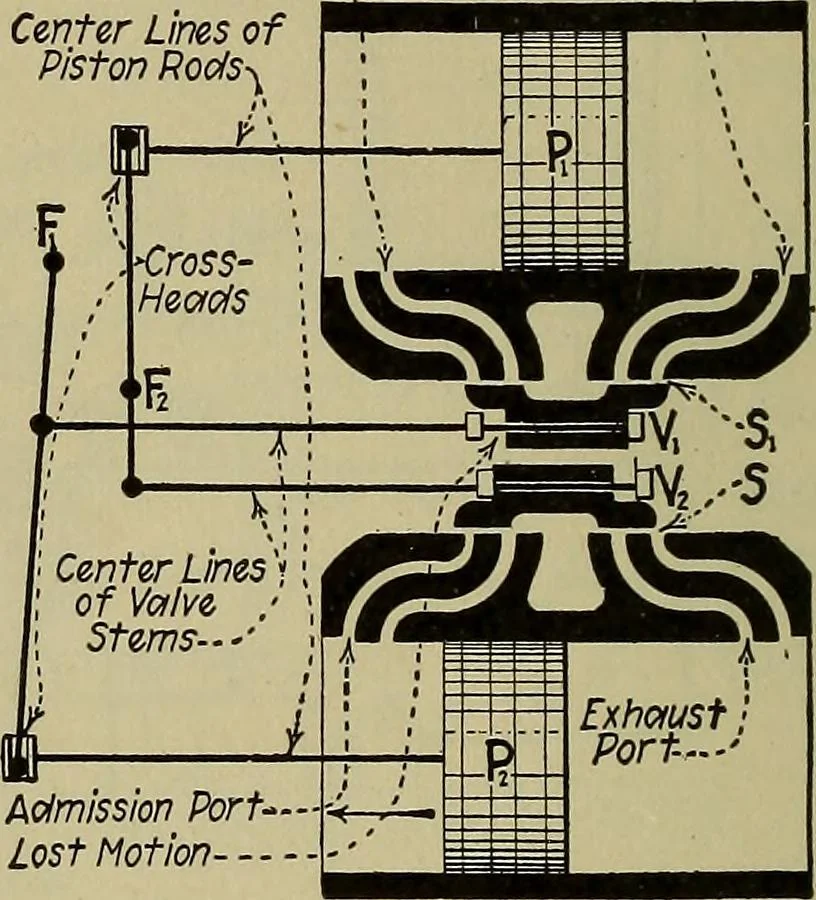

Centerlines ofVotive Stems ■■ Fig. 71.—Pistons And Valves In Mid-Position. … Aotmission Port—lost Motion- Fig. 72.—One Steam-Valve ShiftedFrom Central Position. Piston PiStarts Movement To Left. pivoted at Pi. Piston Pi actuates valve T2 through the short rocker-arm, pivoted at P2. The rocker-arms stand perpendicularly to the center-lines of the cylinders. The lost motion…
