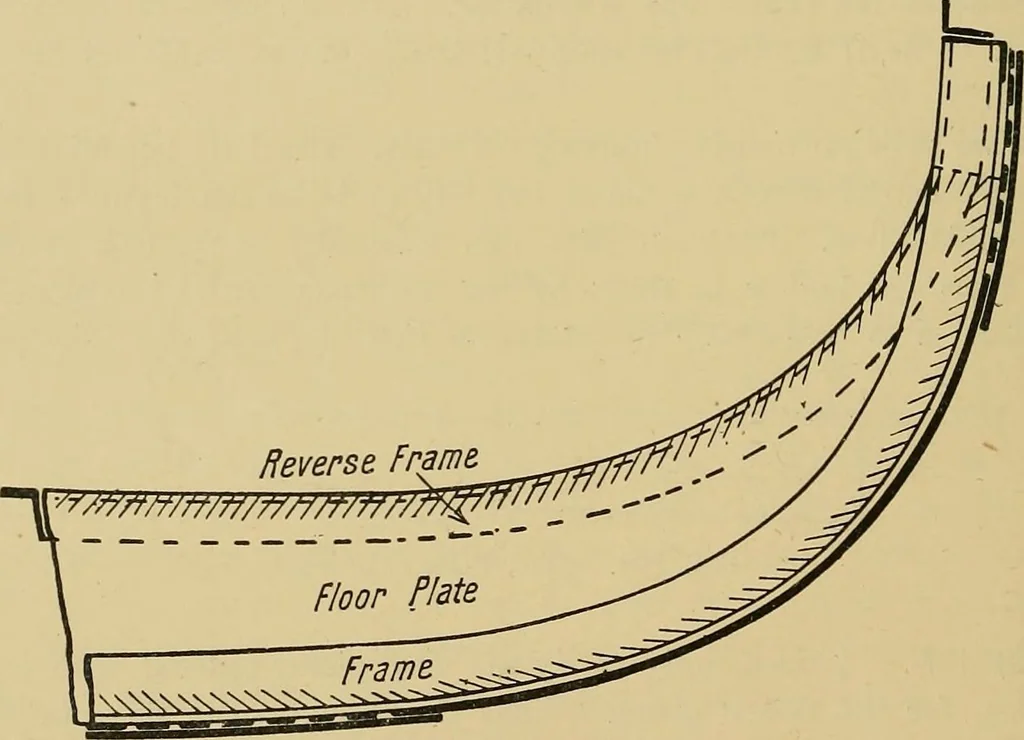

r plate is then carried away and sheared—not, how-ever, to the exact frame edge line, but about ^ in. from the frame edge, sothat when the floor attached to its frame is in position in the ship, thereis no doubt about the frame flange bearing hard upon the shell (see fig.104). According to the 1st… … Reverse Frame. J ^■■■_ ITTTl Floor Framed Fig. 104.—Showing Floor at Bilge. height from the base line—top of keel—to the top of the floor at theextremities should be Vl\ x 2 = 45 in. Both the frame bars and the reversed frame bars for the two sidesof the vessel butt at the middle line—the frames on…
