A textbook on the locomotive and the air brake (1901)
International Correspondence Schools · Scranton, Pa., International textbook co · leaf 237

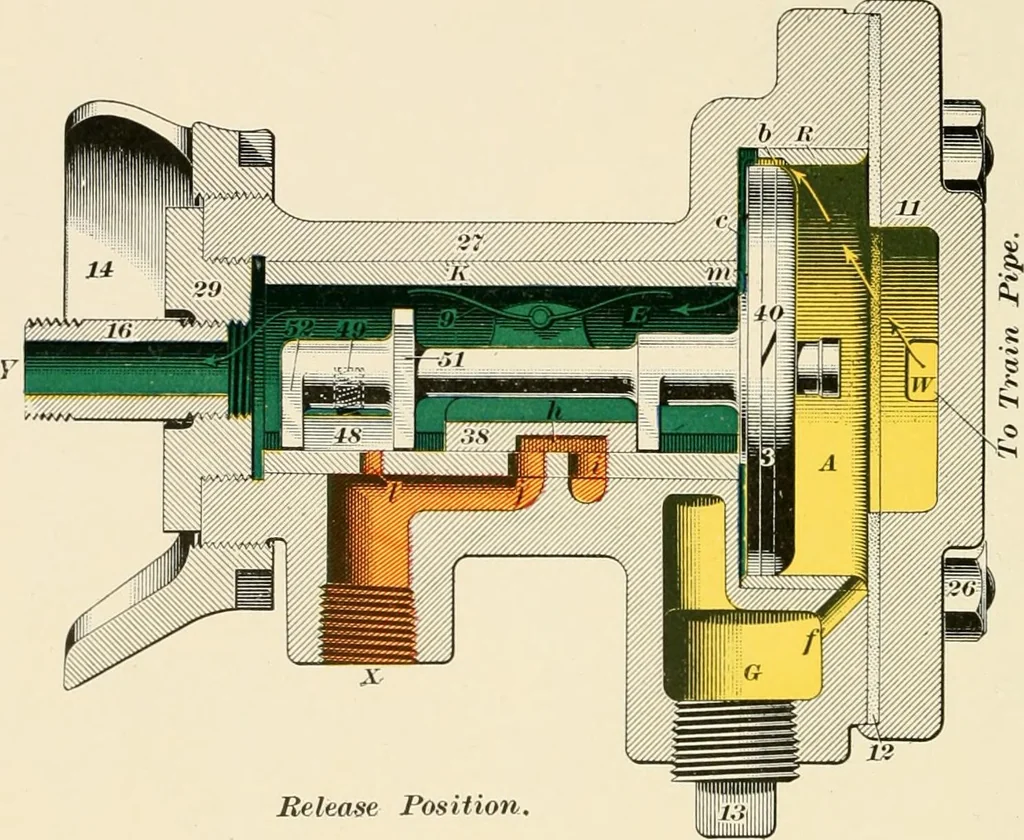

d on engines and tenders exclu-sively. As its name implies, it is a combination of three valves,and is so constructed that, when a reduction in pressure in thetrain pipe occurs from any cause, all three valves will operatein such a manner as to apply the brakes. 35. Figs. 5 and 6 are sectional… … Release Position. Fig. 5.
Locomotives · Locomotive boilers · Railroad cars
