A textbook on the locomotive and the air brake (1901)
International Correspondence Schools · Scranton, Pa., International textbook co · leaf 237

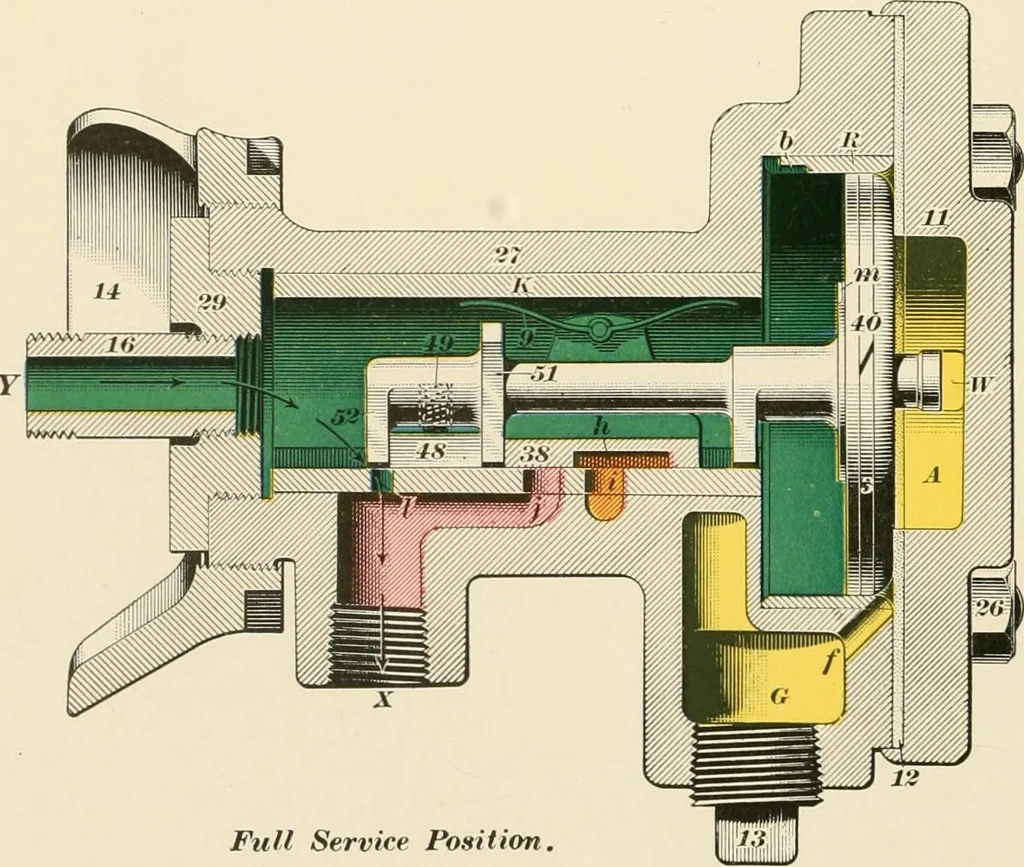

Release Position. Fig. 5. … Full Service Position. Fig. G. §15 THE NEW YORK AIR BRAKE. 19 triple head; 38 is the triple exhaust valve; J^S is the triplegraduating valve; Jf9 is the graduating-valve spring; Jf.0 is thetriple-piston valve; S is the triple-piston packing ring; 29 isthe cap nut for the auxiliary connection; IS is…
Locomotives · Locomotive boilers · Railroad cars
